Integrated Power Designs_1010971
Integrated Power Designs_1010971
Integrated Power Designs

1010971

External/Internal AC DC Converters
Integrated Power Designs
1010971
47-1010971
Integrated Power Designs-1010971-datasheet-299159.pdf
Integrated Power Designs-1010971-datasheets-299159.pdf

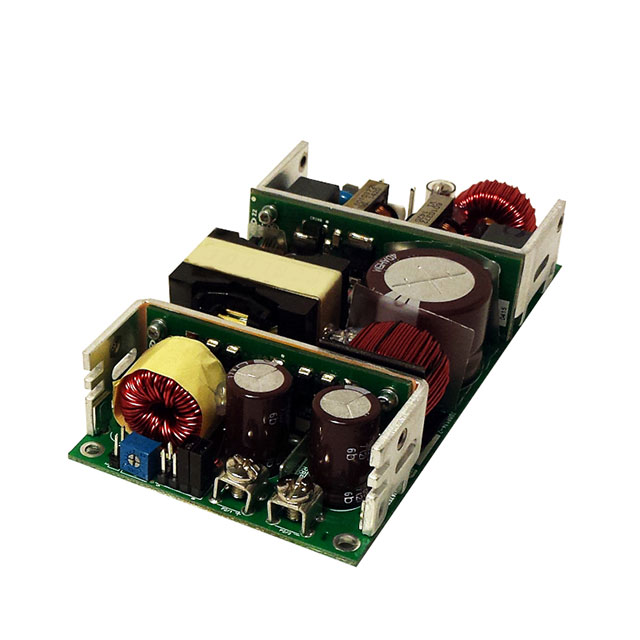

AC/DC CONVERTER 15V 100W
In Stock : 33

Not available

QUICK RFQ
ADD TO RFQ LIST
ampheo flow
  • Quantity
  • Unit Price
  • Ext. Price
    • 1+
    • $134.47000
    • $134.47
    • 25+
    • $127.83000
    • $3195.75
    • 100+
    • $122.78000
    • $12278
    ADD TO CART
    QUICK ORDER
    $134.47000    $134.47
    Description Tech Specifications Documents Shopping Guide

    1010971 Description

    Open Frame AC DC Converters 1 Output 15V 100 ~ 240 VAC Input

    Tech Specifications

    Efficiency
    85%
    Mfr
    Integrated Power Designs
    Features
    Adjustable Output, Remote Sense, Universal Input
    RoHS Status
    ROHS3 Compliant
    Voltage - Input
    100 ~ 240 VAC
    Moisture Sensitivity Level (MSL)
    1 (Unlimited)
    Voltage - Output 6
    -
    Operating Temperature
    0°C ~ 70°C (With Derating)
    Applications
    ITE (Commercial), Medical
    Voltage - Output 2
    -
    Voltage - Output 3
    -
    Voltage - Output 4
    -
    Voltage - Output 5
    -
    Approval Agency
    CE, cURus, TUV, UKCA
    Minimum Load Required
    -
    ECCN
    EAR99
    Voltage - Output 1
    15V
    Mounting Type
    Chassis Mount
    Size / Dimension
    4.50" L x 2.50" W x 1.00" H (114.3mm x 63.5mm x 25.4mm)
    Number of Outputs
    1
    Series
    NXT-100 (100W)
    Power (Watts)
    100W
    Current - Output 1
    6.7 A
    Type
    Open Frame
    Standard Number
    60601-1; 62368-1
    Packaging
    Box
    Part Status
    Active
    HTSUS
    8504.40.6007

    1010971 Documents

    Download datasheets 1010971
