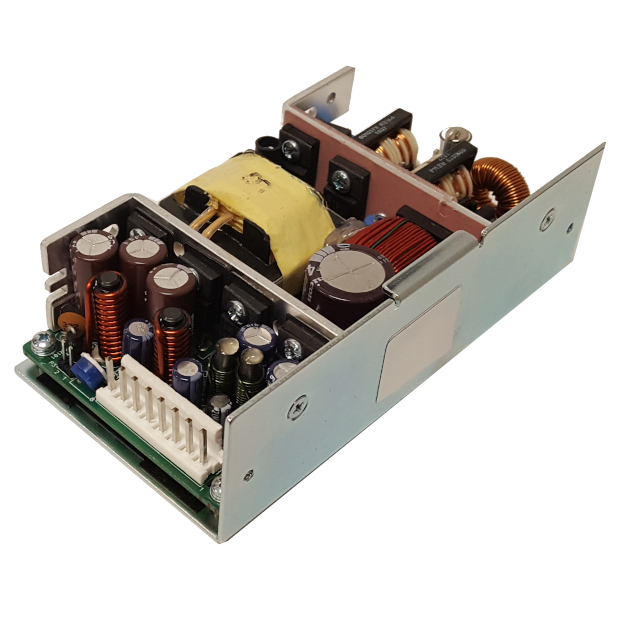

Integrated Power Designs_1011223CH
Integrated Power Designs_1011223CH
Integrated Power Designs

1011223CH

External/Internal AC DC Converters
Integrated Power Designs
1011223CH
47-1011223CH
Integrated Power Designs-1011223CH-datasheet-298866.pdf
Integrated Power Designs-1011223CH-datasheets-298866.pdf
AC/DC CNVRTR 5V 24V +/-15V 70W
In Stock : 50

Not available

QUICK RFQ
ADD TO RFQ LIST
ampheo flow
  • Quantity
  • Unit Price
  • Ext. Price
    • 1+
    • $125.46000
    • $125.46
    • 25+
    • $119.12000
    • $2978
    • 100+
    • $116.07000
    • $11607
    ADD TO CART
    QUICK ORDER
    $125.46000    $125.46
    Description Tech Specifications Documents Shopping Guide

    1011223CH Description

    Chassis AC DC Converters 4 Output 5V 24V 15V -15V 85 ~ 264 VAC Input

    Tech Specifications

    Efficiency
    78%
    Mfr
    Integrated Power Designs
    Features
    Adjustable Output, Universal Input
    RoHS Status
    ROHS3 Compliant
    Voltage - Input
    85 ~ 264 VAC
    Moisture Sensitivity Level (MSL)
    1 (Unlimited)
    Voltage - Output 6
    -
    Operating Temperature
    0°C ~ 70°C (With Derating)
    Applications
    Industrial, ITE (Commercial), Laboratory, Medical
    Voltage - Output 2
    24V
    Voltage - Output 3
    15V
    Voltage - Output 4
    -15V
    Voltage - Output 5
    -
    Approval Agency
    CE, cURus, TUV, UKCA
    ECCN
    EAR99
    Voltage - Output 1
    5V
    Mounting Type
    Chassis Mount
    Size / Dimension
    4.79" L x 2.62" W x 1.48" H (121.6mm x 66.5mm x 37.6mm)
    Number of Outputs
    4
    Current - Output 2
    2 A
    Series
    REL-70 (70W)
    Power (Watts)
    70W
    Current - Output 1
    6 A
    Type
    Chassis
    Current - Output 4
    2 A
    Current - Output 3
    2 A
    Standard Number
    60601-1; 62368-1
    Packaging
    Box
    Part Status
    Active
    HTSUS
    8504.40.6007
    Base Product Number
    1011223
