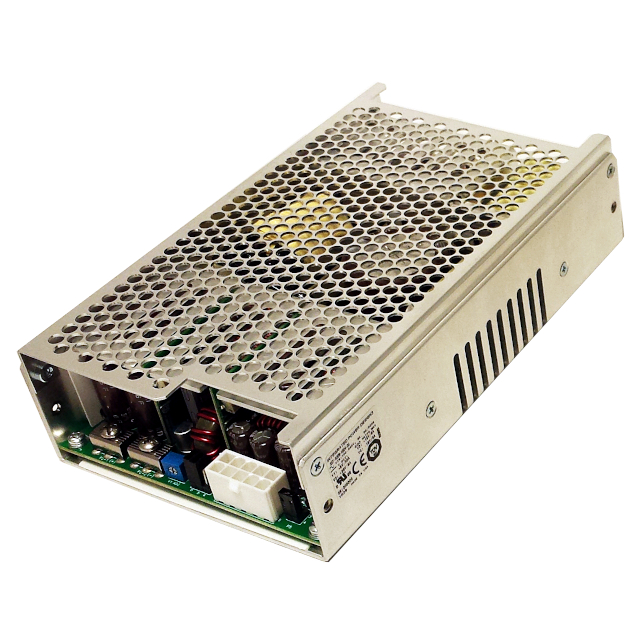

Integrated Power Designs_101185004CHCO
Integrated Power Designs_101185004CHCO
Integrated Power Designs

101185004CHCO

External/Internal AC DC Converters
Integrated Power Designs
101185004CHCO
47-101185004CHCO
Integrated Power Designs-101185004CHCO-datasheet-299197.pdf
Integrated Power Designs-101185004CHCO-datasheets-299197.pdf
AC/DC CNVRTR 3.3V 5V +/-15V 400W
In Stock : 50

Not available

QUICK RFQ
ADD TO RFQ LIST
ampheo flow
  • Quantity
  • Unit Price
  • Ext. Price
    • 1+
    • $450.17000
    • $450.17
    • 25+
    • $418.30000
    • $10457.5
    • 100+
    • $390.97000
    • $39097
    ADD TO CART
    QUICK ORDER
    $450.17000    $450.17
    Description Tech Specifications Documents Shopping Guide

    101185004CHCO Description

    Enclosed AC DC Converters 4 Output 3.3V 5V 15V -15V 100 ~ 240 VAC Input

    Tech Specifications

    Efficiency
    87%
    Mfr
    Integrated Power Designs
    Features
    Adjustable Output, Remote Sense, Universal Input
    RoHS Status
    ROHS3 Compliant
    Voltage - Input
    100 ~ 240 VAC
    Moisture Sensitivity Level (MSL)
    1 (Unlimited)
    Voltage - Output 6
    -
    Operating Temperature
    -20°C ~ 70°C (With Derating)
    Applications
    ITE (Commercial), Medical
    Voltage - Output 2
    5V
    Voltage - Output 3
    15V
    Voltage - Output 4
    -15V
    Voltage - Output 5
    -
    Approval Agency
    CE, cURus, TUV, UKCA
    Minimum Load Required
    -
    ECCN
    EAR99
    Voltage - Output 1
    3.3V
    Mounting Type
    Chassis Mount
    Size / Dimension
    7.10" L x 4.18" W x 1.50" H (180.3mm x 106.2mm x 38.0mm)
    Number of Outputs
    4
    Current - Output 2
    15 A
    Series
    NXT-400 (400W)
    Power (Watts)
    400W
    Current - Output 1
    50 A
    Type
    Enclosed
    Current - Output 4
    5 A
    Current - Output 3
    5 A
    Standard Number
    60601-1; 62368-1
    Packaging
    Box
    Part Status
    Active
    HTSUS
    8504.40.6007
    Base Product Number
    101144704

    101185004CHCO Documents

    Download datasheets 101185004CHCO
