Integrated Power Designs_101186402
Integrated Power Designs_101186402

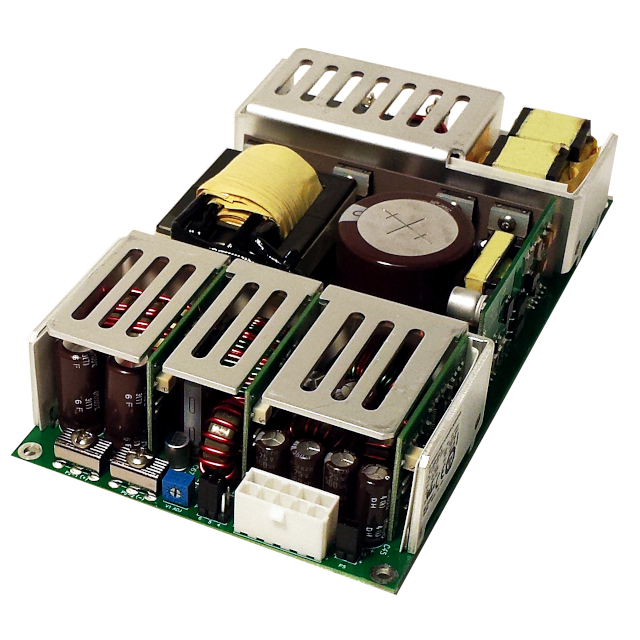

Integrated Power Designs

101186402

External/Internal AC DC Converters
Integrated Power Designs
101186402
47-101186402
Integrated Power Designs-101186402-datasheet-298391.pdf
Integrated Power Designs-101186402-datasheets-298391.pdf
AC/DC CNVRTR 5V 28V +/-12V 400W
In Stock : 50

Not available

QUICK RFQ
ADD TO RFQ LIST
ampheo flow
  • Quantity
  • Unit Price
  • Ext. Price
    • 1+
    • $436.56000
    • $436.56
    • 25+
    • $404.69000
    • $10117.25
    • 100+
    • $377.36000
    • $37736
    ADD TO CART
    QUICK ORDER
    $436.56000    $436.56
    Description Tech Specifications Documents Shopping Guide

    101186402 Description

    NXT-400 (400W) Series, ROHS3 Compliant

    Tech Specifications

    Efficiency
    87%
    Mfr
    Integrated Power Designs
    Features
    Adjustable Output, Remote Sense, Universal Input
    RoHS Status
    ROHS3 Compliant
    Voltage - Input
    100 ~ 240 VAC
    Moisture Sensitivity Level (MSL)
    1 (Unlimited)
    Voltage - Output 6
    -
    Operating Temperature
    -20°C ~ 70°C (With Derating)
    Applications
    ITE (Commercial), Medical
    Voltage - Output 2
    28V
    Voltage - Output 3
    12V
    Voltage - Output 4
    -12V
    Voltage - Output 5
    -
    Approval Agency
    CE, cURus, TUV, UKCA
    Minimum Load Required
    -
    ECCN
    EAR99
    Voltage - Output 1
    5V
    Mounting Type
    Chassis Mount
    Size / Dimension
    7.00" L x 4.00" W x 1.50" H (177.8mm x 101.6mm x 38.0mm)
    Number of Outputs
    4
    Current - Output 2
    5 A
    Series
    NXT-400 (400W)
    Power (Watts)
    400W
    Current - Output 1
    50 A
    Type
    Open Frame
    Current - Output 4
    5 A
    Current - Output 3
    5 A
    Standard Number
    60601-1; 62368-1
    Packaging
    Box
    Part Status
    Active
    HTSUS
    8504.40.6007

    101186402 Documents

    Download datasheets 101186402
