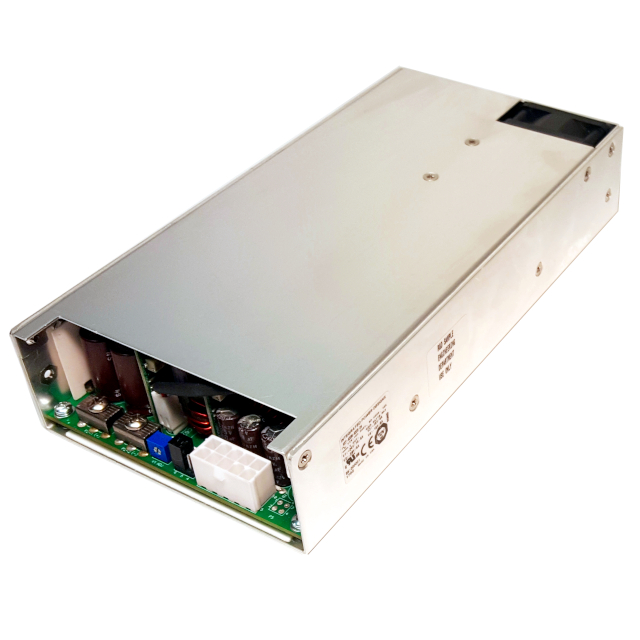

Integrated Power Designs

101190801

External/Internal AC DC Converters
Integrated Power Designs
101190801
47-101190801
Integrated Power Designs-101190801-datasheet-419722.pdf
Integrated Power Designs-101190801-datasheets-419722.pdf
AC/DC CONVERTER 5V +/-12V 400W
In Stock : 50

Not available

QUICK RFQ
ADD TO RFQ LIST
ampheo flow
  • Quantity
  • Unit Price
  • Ext. Price
    • 1+
    • $466.98000
    • $466.98
    • 25+
    • $436.58000
    • $10914.5
    • 100+
    • $410.45000
    • $41045
    ADD TO CART
    QUICK ORDER
    $466.98000    $466.98
    Description Tech Specifications Documents Shopping Guide

    101190801 Description

    NXT-400 (400W) Series, ROHS3 Compliant

    Tech Specifications

    Efficiency
    87%
    REACH Status
    REACH Unaffected
    Mfr
    Integrated Power Designs
    Features
    Adjustable Output, Remote Sense, Universal Input
    RoHS Status
    ROHS3 Compliant
    Voltage - Input
    100 ~ 240 VAC
    Moisture Sensitivity Level (MSL)
    1 (Unlimited)
    Voltage - Output 6
    -
    Operating Temperature
    -20°C ~ 70°C (With Derating)
    Applications
    ITE (Commercial), Medical
    Voltage - Output 2
    12V
    Voltage - Output 3
    -
    Voltage - Output 4
    -12V
    Voltage - Output 5
    -
    Approval Agency
    CE, TUV, UKCA
    Minimum Load Required
    -
    ECCN
    EAR99
    Voltage - Output 1
    5V
    Mounting Type
    Chassis Mount
    Size / Dimension
    8.40" L x 4.15" W x 1.61" H (213.4mm x 105.4mm x 40.9mm)
    Number of Outputs
    3
    Current - Output 2
    10 A
    Series
    NXT-400 (400W)
    Power (Watts)
    400W
    Current - Output 1
    40 A
    Type
    Enclosed
    Current - Output 3
    5 A
    Standard Number
    60601-1; 62368-1
    Packaging
    Box
    Part Status
    Active
    HTSUS
    8504.40.6007

    101190801 Documents

    Download datasheets 101190801
