25LB30-Q
Sensors
25LB30-Q
54-25LB30-Q

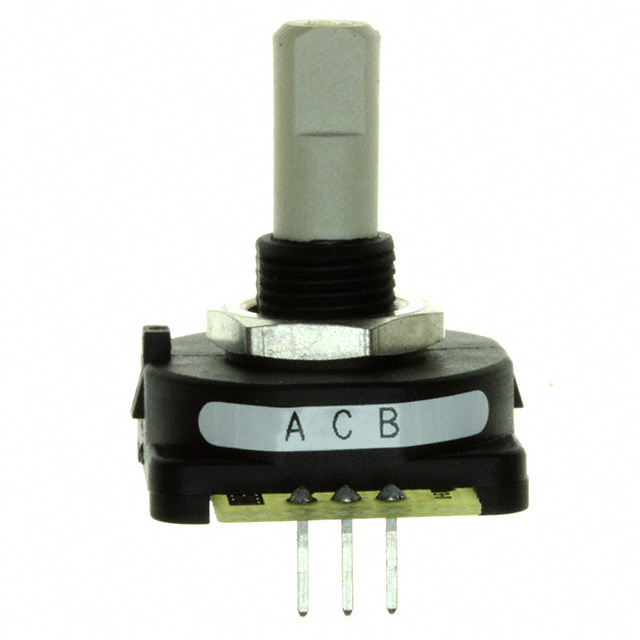

ROTARY ENCODER MECHANICAL 12PPR
In Stock : 2
Not available
QUICK RFQ
ADD TO RFQ LIST
- 1+
- $28.38000
- $28.38
- 10+
- $22.84300
- $228.43
- 100+
- $18.38910
- $1838.91
ADD TO CART
QUICK ORDER
$28.38000
$28.38
Tech Specifications
Unit Weight
0.705479 oz
Product
Magnetic Encoders
Encoder Type
Mechanical
PPAP
No
Built in Switch
No
Product Status
Active
RoHS
RoHS Compliant
Automotive
No
Product Length (mm)
23.5
Number of Channels
2
Technology
Mechanical
Voltage - Supply
-
REACH Status
REACH Unaffected
Typical Operating Supply Voltage
14VDC
EU RoHS
Compliant
Shaft Style
Flat
Moisture Sensitivity Level (MSL)
1 (Unlimited)
Encoder Signal
Digital Square Wave
Termination Style
PC Pin
Terminal Type
PC Pin
ECCN
EAR99
Rotational Life (Cycles Min)
100K
Orientation
Vertical
Mounting Type
Panel, PCB Through Hole
Size / Dimension
25.91 mm x 23.5 mm x 27.76 mm
Mounting
Through Hole
With Switch
Without Switch
Bushing Size
3/8 in x 1/4 in
Maximum Operating Torque (N.m)
0.042
Life
100000 Cycle
Pulses per Revolution
12
HTSUS
8543.70.4500
Package
Bulk
USHTS
8543704500
Resolution
12 PPR
Programmability
No
Bushing Thread
3/8-32 UNEF-2A
HTS
EA
Output Type
Quadrature (Incremental)
ECCN (US)
EAR99
Minimum Operating Temperature (°C)
-65
Shaft Length
12.7 mm
Maximum Operating Temperature (°C)
85
Number of Detents
12 Detent
Detent
Yes
Mfr
Grayhill Inc.
Shaft Diameter (mm)
6.35
Product Depth (mm)
25.91
Maximum Operating Temperature
+ 85 C
Mechanical Life (Cycles)
100000
RoHS Status
ROHS3 Compliant
Encoder Code
Quadrature
Mounting Style
PCB Mount
Motion
Rotary
Bushing Material
Reinforced Thermoplastic
Shaft Type
D / Flatted
Actuator Type
1/4" Dia Flatted End
Encoder Reading
Incremental
Shaft Diameter
6.35 mm
Minimum Operating Temperature
- 40 C
Series
25L
Type
Incremental
Body Orientation
Straight
Product Height (mm)
27.76
Part Status
Active
Number of Decks
1
Base Product Number
25LB30
