C&D Technologies (Murata Power Solutions)
49221SC
AC DC DC Modules
49221SC
55-49221SC

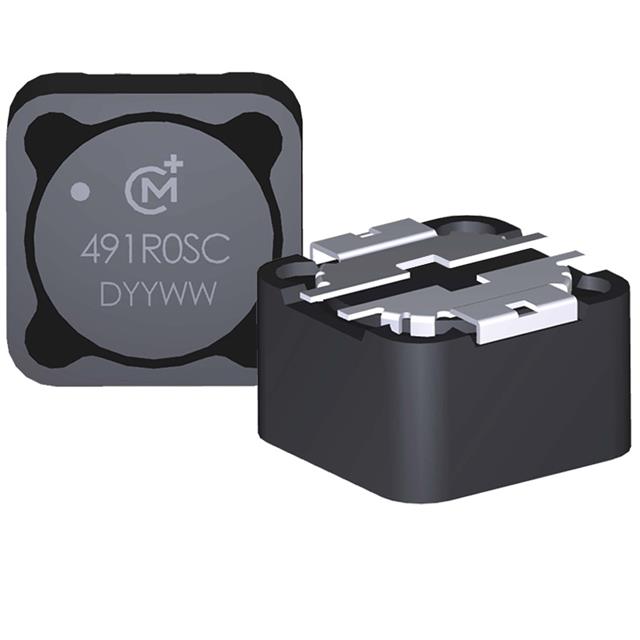

FIXED IND 220UH 1.1A 380MOHM SMD
In Stock : Please Submit RFQ TO US
Not available
QUICK RFQ
ADD TO RFQ LIST
Tech Specifications
Quality Test Frequency (Hz)
800K
Q @ Freq
36 @ 800kHz
PPAP
No
Product Status
Active
Protection Style
Shielded
Automotive
No
Ratings
-
Product Length (mm)
12.5
Inductance (H)
220u
Package / Case
Nonstandard, 4 Lead
Technology
Bobbin Core
Minimum Quality Factor
36(Typ)
REACH Status
REACH Unaffected
EU RoHS
Compliant
Material - Core
-
Moisture Sensitivity Level (MSL)
1 (Unlimited)
Operating Temperature
-40°C ~ 85°C
Current - Saturation (Isat)
-
ECCN
EAR99
Shielding
Shielded
Mounting Type
Surface Mount
Size / Dimension
0.480" L x 0.480" W (12.20mm x 12.20mm)
Maximum DC Current (A)
1.1
DC Resistance (DCR)
380mOhm Max
Mounting
Surface Mount
Minimum Self Resonant Frequency (Hz)
4M(Typ)
Number of Terminals
2
Inductance Test Frequency (Hz)
10K
HTSUS
8504.50.4000
Package
Tape & Reel (TR)
Height - Seated (Max)
0.315" (8.00mm)
ECCN (US)
EAR99
Current Rating (Amps)
1.1 A
Supplier Device Package
-
Minimum Operating Temperature (°C)
-40
Maximum Operating Temperature (°C)
85
Inductance
220 µH
Frequency - Self Resonant
4MHz
Mfr
Murata Power Solutions Inc.
Product Depth (mm)
12.5
RoHS Status
ROHS3 Compliant
Maximum DC Resistance (Ohm)
0.38
Inductance Frequency - Test
10 kHz
Tolerance
±20%
Maximum Saturation Current (A)
1.1
Series
4900S
Type
Wirewound
Product Height (mm)
8
Part Status
Active
Base Product Number
49
