Grayhill, Inc._62A11-01-050S
Grayhill, Inc._62A11-01-050S
Grayhill, Inc.

62A11-01-050S

Sensors
Grayhill, Inc.
62A11-01-050S
54-62A11-01-050S
Grayhill, Inc.-62A11-01-050S-datasheet-901461.pdf
Grayhill, Inc.-62A11-01-050S-datasheets-901461.pdf

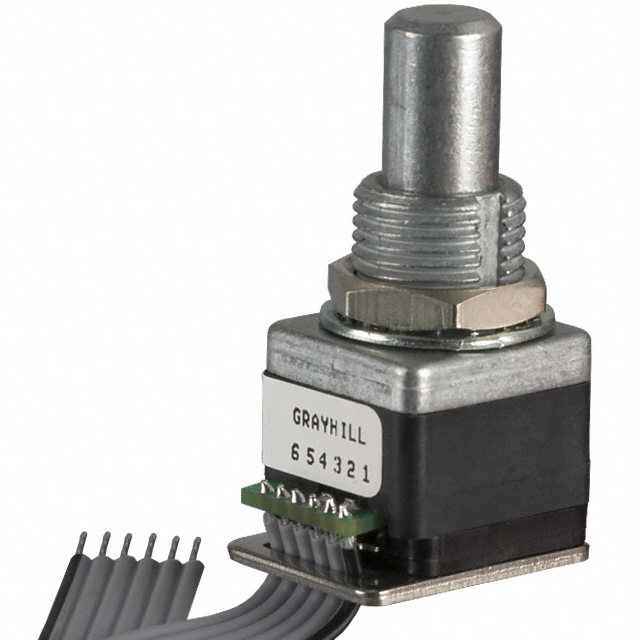

ROTARY ENCODER OPT 32PPR 5" CBL
In Stock : 35

Not available

QUICK RFQ
ADD TO RFQ LIST
ampheo flow
  • Quantity
  • Unit Price
  • Ext. Price
    • 1+
    • $46.39000
    • $46.39
    • 10+
    • $43.65700
    • $436.57
    • 100+
    • $37.38130
    • $3738.13
    ADD TO CART
    QUICK ORDER
    $46.39000    $46.39
    Description Tech Specifications Documents Shopping Guide

    Tech Specifications

    Unit Weight
    0.652216 oz
    Product
    Optical Encoders
    Encoder Type
    Optical
    PPAP
    No
    Built in Switch
    No
    Maximum Operating Speed
    100r/min
    Product Status
    Active
    RoHS
    RoHS Compliant
    Automotive
    No
    Product Length (mm)
    12.7
    Number of Channels
    2
    Technology
    Optical
    Voltage - Supply
    5V
    REACH Status
    REACH Unaffected
    Typical Operating Supply Voltage
    5VDC
    EU RoHS
    Compliant
    Shaft Style
    Flat
    Moisture Sensitivity Level (MSL)
    1 (Unlimited)
    Encoder Signal
    Digital Square Wave
    Termination Style
    Cable Leads
    Terminal Type
    Cable
    ECCN
    EAR99
    Maximum Operating Supply Voltage
    5.25VDC
    Rotational Life (Cycles Min)
    1M
    Orientation
    User Selectable
    Mounting Type
    Panel Mount
    Size / Dimension
    1/2 in
    Mounting
    Panel Mount
    With Switch
    Without Switch
    Bushing Size
    3/8 in x 0.312 in
    Shock Rating
    100G
    Maximum Operating Torque (N.m)
    0.014
    Life
    1000000 Cycle
    Pulses per Revolution
    32
    HTSUS
    8543.70.4500
    Package
    Bulk
    USHTS
    8543704500
    Resolution
    32 PPR
    Programmability
    No
    Bushing Thread
    3/8-32 UNEF-2A
    HTS
    8543.90.88.85
    Output Type
    Quadrature (Incremental)
    ECCN (US)
    EAR99
    Minimum Operating Temperature (°C)
    -40
    Shaft Length
    3/8 in
    Maximum Operating Temperature (°C)
    85
    Number of Detents
    32 Detent
    Detent
    Yes
    Mfr
    Grayhill Inc.
    Shaft Diameter (mm)
    6.35
    Product Depth (mm)
    16.26
    Maximum Operating Temperature
    + 85 C
    Mechanical Life (Cycles)
    1000000
    RoHS Status
    ROHS3 Compliant
    Encoder Code
    Quadrature
    Mounting Style
    Panel Mount
    Motion
    Rotary
    Bushing Material
    Metal
    Shaft Type
    D / Flatted
    Actuator Type
    1/4" Dia Flatted End
    Encoder Reading
    Incremental
    Shaft Diameter
    6.35 mm
    Minimum Operating Temperature
    - 40 C
    Series
    62A
    Type
    Incremental
    Body Orientation
    Straight
    Minimum Operating Supply Voltage
    4.75VDC
    Operating Supply Voltage
    5 VDC
    Product Height (mm)
    30.78
    Part Status
    Active
    Base Product Number
    62A11

    62A11-01-050S Documents

    Download datasheets 62A11-01-050S
