Grayhill, Inc.

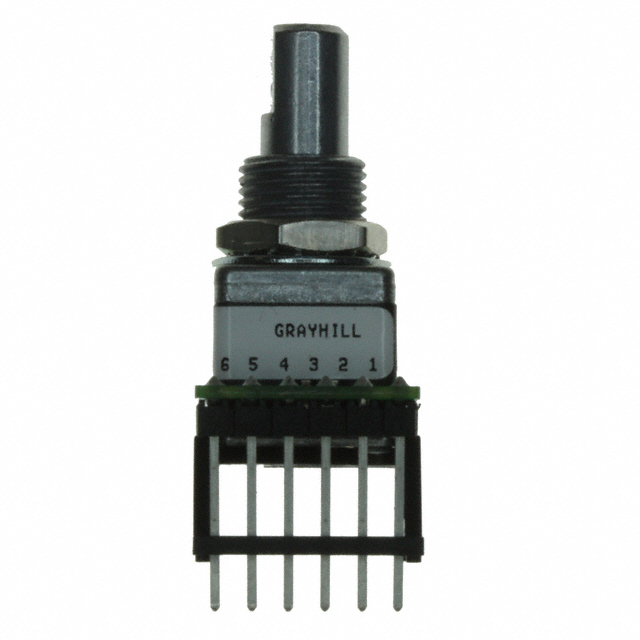

62A22-02-P
Sensors
62A22-02-P
54-62A22-02-P
ROTARY ENCODER OPTICAL 16PPR
In Stock : 163
Not available
QUICK RFQ
ADD TO RFQ LIST
- 1+
- $41.36040
- $41.36
- 10+
- $38.69200
- $386.92
- 100+
- $36.55740
- $3655.74
- 1000+
- $35.49000
- $35490
ADD TO CART
QUICK ORDER
$41.36040
$41.36
Tech Specifications
Unit Weight
0.777126 oz
Product
Optical Encoders
Encoder Type
Optical
PPAP
No
Built in Switch
Yes
Maximum Operating Speed
100r/min
Product Status
Active
RoHS
RoHS Compliant
Automotive
No
Product Length (mm)
15.7
Number of Channels
2
Technology
Optical
Voltage - Supply
5V
REACH Status
REACH Unaffected
Typical Operating Supply Voltage
5VDC
EU RoHS
Compliant
Shaft Style
Flat
Moisture Sensitivity Level (MSL)
1 (Unlimited)
Encoder Signal
Digital Square Wave
Termination Style
PC Pin
Terminal Type
PC Pin
ECCN
EAR99
Maximum Operating Supply Voltage
5.25VDC
Rotational Life (Cycles Min)
1M
Orientation
User Selectable
Mounting Type
PCB, Through Hole
Size / Dimension
1/2 in
Mounting
Through Hole
With Switch
Pushbutton Switch
Bushing Size
3/8 in x 0.312 in
Shock Rating
100G
Maximum Operating Torque (N.m)
0.014
Life
1000000 Cycle
Pulses per Revolution
16
HTSUS
8543.70.4500
Package
Bulk
USHTS
8543704500
Resolution
16 PPR
Programmability
No
Bushing Thread
3/8-32 UNEF-2A
HTS
8543.90.88.85
Output Type
Quadrature (Incremental)
ECCN (US)
EAR99
Minimum Operating Temperature (°C)
-40
Shaft Length
3/8 in
Maximum Operating Temperature (°C)
85
Number of Detents
16 Detent
Detent
Yes
Mfr
Grayhill Inc.
Shaft Diameter (mm)
6.32
Product Depth (mm)
19.61
Maximum Operating Temperature
+ 85 C
Mechanical Life (Cycles)
1000000
RoHS Status
ROHS3 Compliant
Encoder Code
Quadrature
Mounting Style
PCB Mount
Motion
Rotary
Bushing Material
Metal
Shaft Type
D / Flatted
Actuator Type
1/4" Dia Flatted End
Encoder Reading
Incremental
Shaft Diameter
6.35 mm
Minimum Operating Temperature
- 40 C
Series
62A
Type
Incremental
Body Orientation
Straight
Minimum Operating Supply Voltage
4.75VDC
Operating Supply Voltage
5 VDC
Product Height (mm)
38.22
Part Status
Active
Base Product Number
62A22
62A22-02-P Documents
Download datasheets 62A22-02-P
