Grayhill, Inc.
62AG22-L0-060C
Sensors
62AG22-L0-060C
54-62AG22-L0-060C

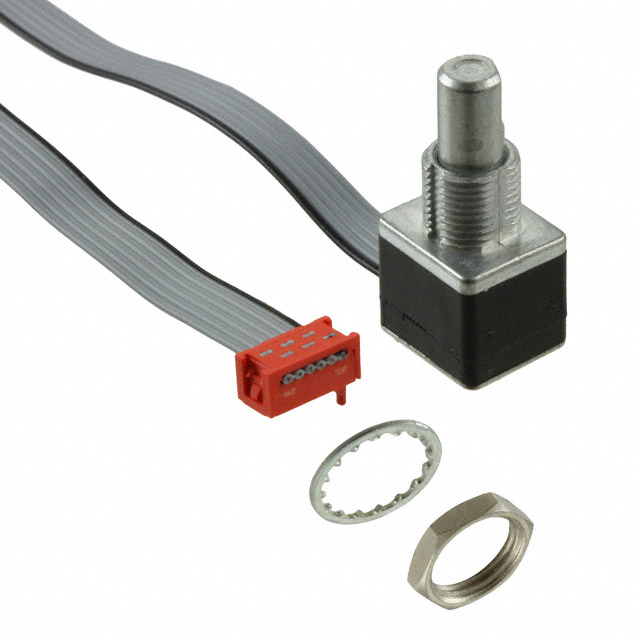

ROTARY ENCODER OPT 16PPR 6" CBL
In Stock : 24
Not available
QUICK RFQ
ADD TO RFQ LIST
- 1+
- $19.40000
- $19.4
- 10+
- $17.50800
- $175.08
- 100+
- $15.20150
- $1520.15
ADD TO CART
QUICK ORDER
$19.40000
$19.40
Tech Specifications
Unit Weight
1.070565 oz
Product
Optical Encoders
Encoder Type
Optical
PPAP
Unknown
Built in Switch
No
Maximum Operating Speed
100r/min
Product Status
Active
RoHS
RoHS Compliant
Automotive
Unknown
Product Length (mm)
12.7
Number of Channels
2
Technology
Optical
Voltage - Supply
5V
REACH Status
REACH Unaffected
Typical Operating Supply Voltage
5VDC
EU RoHS
Compliant
Shaft Style
Flat
Moisture Sensitivity Level (MSL)
1 (Unlimited)
Encoder Signal
Digital Square Wave
Termination Style
Cable with Connector
Terminal Type
Connector
ECCN
EAR99
Maximum Operating Supply Voltage
5.25VDC
Rotational Life (Cycles Min)
1M
Orientation
Vertical
Mounting Type
Panel Mount
Size / Dimension
14.73 mm x 12.7 mm
Mounting
Panel Mount
With Switch
Without Switch
Bushing Size
3/8 in x 0.312 in
Shock Rating
100G
Maximum Operating Torque (N.m)
0.014(Avg)
Life
1000000 Cycle
Pulses per Revolution
16
HTSUS
8543.70.4500
Package
Bulk
USHTS
8543704500
Resolution
16 PPR
Programmability
No
Bushing Thread
3/8-32 UNEF-2A
HTS
8543.90.88.85
Output Type
Quadrature (Incremental)
ECCN (US)
EAR99
Minimum Operating Temperature (°C)
-40
Shaft Length
3/8 in
Maximum Operating Temperature (°C)
85
Number of Detents
16 Detent
Detent
Yes
Mfr
Grayhill Inc.
Shaft Diameter (mm)
6.32
Product Depth (mm)
14.73
Maximum Operating Temperature
+ 85 C
Mechanical Life (Cycles)
1000000
RoHS Status
ROHS3 Compliant
Encoder Code
Quadrature
Mounting Style
Panel Mount
Motion
Rotary
Bushing Material
Metal
Shaft Type
D / Flatted
Actuator Type
1/4" Dia Flatted End
Encoder Reading
Incremental
Shaft Diameter
6.32 mm
Minimum Operating Temperature
- 40 C
Series
62AG
Type
Incremental
Body Orientation
Straight
Minimum Operating Supply Voltage
4.75VDC
Operating Supply Voltage
5 VDC
Product Height (mm)
30.96
Part Status
Active
Base Product Number
62AG22
62AG22-L0-060C Documents
Download datasheets 62AG22-L0-060C
