Grayhill, Inc._62AG22-L5-050C
Grayhill, Inc._62AG22-L5-050C
Grayhill, Inc.

62AG22-L5-050C

Sensors
Grayhill, Inc.
62AG22-L5-050C
54-62AG22-L5-050C
Grayhill, Inc.-62AG22-L5-050C-datasheet-901501.pdf
Grayhill, Inc.-62AG22-L5-050C-datasheets-901501.pdf

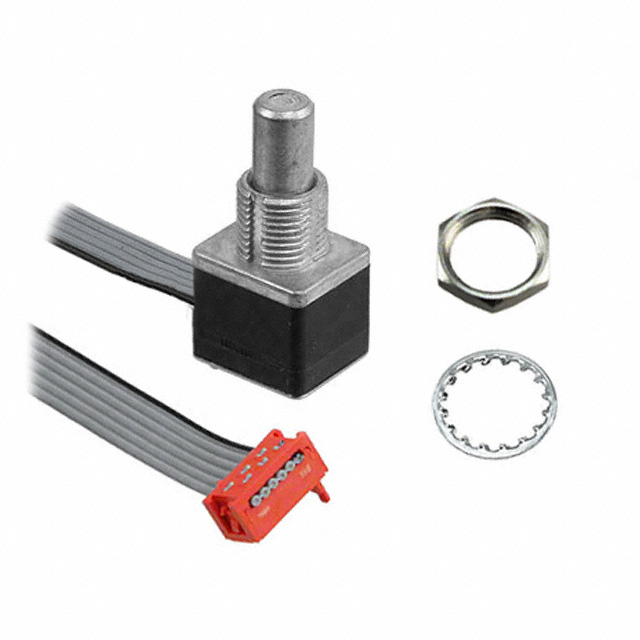

ROTARY ENCODER OPT 16PPR 5" CBL
In Stock : 3

Not available

QUICK RFQ
ADD TO RFQ LIST
ampheo flow
  • Quantity
  • Unit Price
  • Ext. Price
    • 1+
    • $19.43000
    • $19.43
    • 10+
    • $17.54200
    • $175.42
    • 100+
    • $15.23080
    • $1523.08
    ADD TO CART
    QUICK ORDER
    $19.43000    $19.43
    Description Tech Specifications Documents Shopping Guide

    Tech Specifications

    Unit Weight
    1.269334 oz
    Bushing Thread
    3/8-32 UNEF-2A
    Output Type
    Quadrature (Incremental)
    Product
    Optical Encoders
    Encoder Type
    Optical
    Built in Switch
    Yes
    Product Status
    Active
    RoHS
    RoHS Compliant
    Shaft Length
    3/8 in
    Number of Detents
    16 Detent
    Number of Channels
    2 Channel
    Technology
    Optical
    Voltage - Supply
    5V
    Detent
    Yes
    REACH Status
    REACH Unaffected
    Mfr
    Grayhill Inc.
    Maximum Operating Temperature
    + 85 C
    RoHS Status
    ROHS3 Compliant
    Moisture Sensitivity Level (MSL)
    1 (Unlimited)
    Mounting Style
    Panel Mount
    Bushing Material
    Metal
    Termination Style
    Cable with Connector
    Shaft Type
    D / Flatted
    Actuator Type
    1/4" Dia Flatted End
    ECCN
    EAR99
    Shaft Diameter
    6.32 mm
    Rotational Life (Cycles Min)
    1M
    Orientation
    Vertical
    Mounting Type
    Panel Mount
    Size / Dimension
    14.73 mm x 12.7 mm
    Minimum Operating Temperature
    - 40 C
    Series
    62AG
    Type
    Incremental
    With Switch
    Pushbutton Switch
    Bushing Size
    3/8 in x 0.312 in
    Operating Supply Voltage
    5 VDC
    Life
    1000000 Cycle
    Pulses per Revolution
    16
    HTSUS
    8543.70.4500
    Package
    Bulk
    USHTS
    8543704500
    Resolution
    16 PPR
    Base Product Number
    62AG22

    62AG22-L5-050C Documents

    Download datasheets 62AG22-L5-050C
