Grayhill, Inc._62HS22-H9-050S
Grayhill, Inc._62HS22-H9-050S
Grayhill, Inc.

62HS22-H9-050S

Sensors
Grayhill, Inc.
62HS22-H9-050S
54-62HS22-H9-050S
Grayhill, Inc.-62HS22-H9-050S-datasheet-901326.pdf
Grayhill, Inc.-62HS22-H9-050S-datasheets-901326.pdf

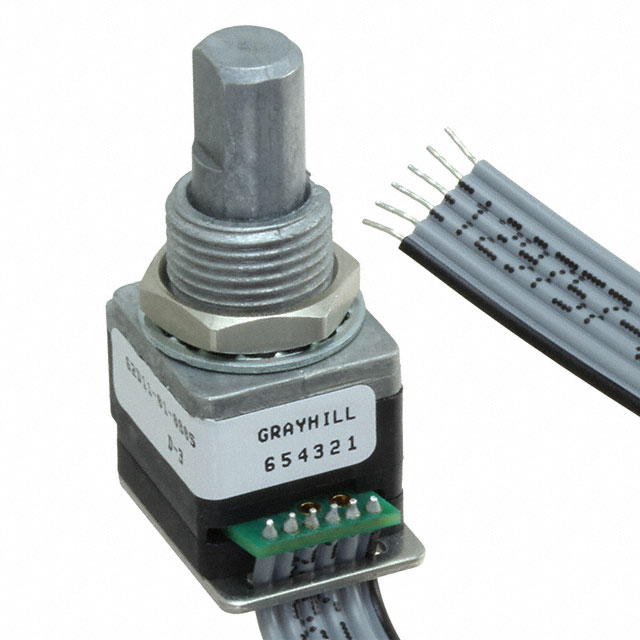

ROTARY ENCODER OPTICAL 16PPR
In Stock : 4

Not available

QUICK RFQ
ADD TO RFQ LIST
ampheo flow
  • Quantity
  • Unit Price
  • Ext. Price
    • 1+
    • $48.49000
    • $48.49
    • 10+
    • $45.63600
    • $456.36
    • 100+
    • $39.07570
    • $3907.57
    ADD TO CART
    QUICK ORDER
    $48.49000    $48.49
    Description Tech Specifications Documents Shopping Guide

    Tech Specifications

    Unit Weight
    1.156704 oz
    Bushing Thread
    3/8-32 UNEF-2A
    Output Type
    Quadrature (Incremental)
    Product
    Optical Encoders
    Encoder Type
    Optical
    Built in Switch
    Yes
    Product Status
    Active
    RoHS
    RoHS Compliant
    Shaft Length
    9.53 mm
    Number of Detents
    16 Detent
    Number of Channels
    2 Channel
    Technology
    Optical
    Voltage - Supply
    5V
    Detent
    Yes
    REACH Status
    REACH Unaffected
    Mfr
    Grayhill Inc.
    Maximum Operating Temperature
    + 85 C
    RoHS Status
    ROHS3 Compliant
    Moisture Sensitivity Level (MSL)
    1 (Unlimited)
    Mounting Style
    Panel Mount
    Bushing Material
    Zinc
    Termination Style
    Cable Leads
    Shaft Type
    D / Flatted
    Actuator Type
    Concentric
    ECCN
    EAR99
    Shaft Diameter
    3.18 mm
    Rotational Life (Cycles Min)
    1M
    Orientation
    Vertical
    Mounting Type
    Panel Mount
    Size / Dimension
    19.05 mm x 16.5 mm x 30.92 mm
    Minimum Operating Temperature
    - 40 C
    Series
    62HS
    Type
    Incremental
    With Switch
    Pushbutton Switch
    Bushing Size
    3/8 in x 0.312 in
    Operating Supply Voltage
    5 VDC
    Life
    1000000 Cycle
    Pulses per Revolution
    16
    HTSUS
    8543.70.4500
    Package
    Bulk
    USHTS
    8543704500
    Resolution
    16 PPR
    Base Product Number
    62HS22

    62HS22-H9-050S Documents

    Download datasheets 62HS22-H9-050S
