Grayhill, Inc.
62S11-M0-P
Sensors
62S11-M0-P
54-62S11-M0-P

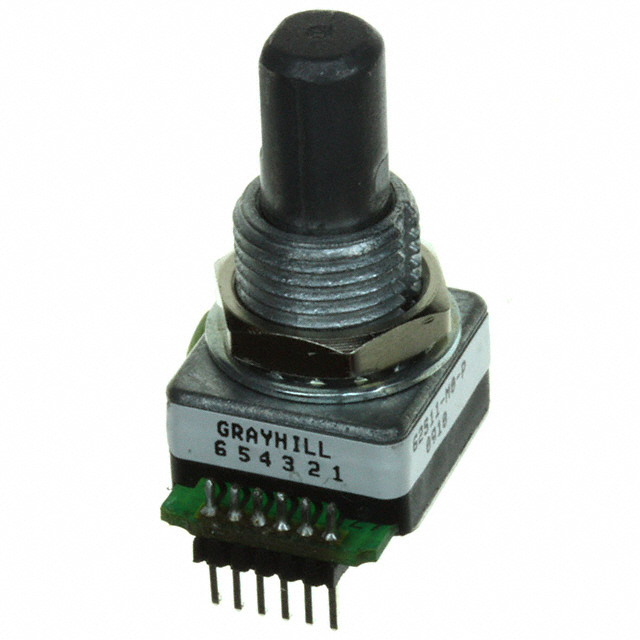

ROTARY ENCODER OPTICAL 32PPR
In Stock : Please Submit RFQ TO US
Not available
QUICK RFQ
ADD TO RFQ LIST
62S11-M0-P Description
Grayhill, Inc. 62S Serie, Optical Encoders
Tech Specifications
Unit Weight
0.504594 oz
Bushing Thread
3/8-32 UNEF-2A
Output Type
Quadrature (Incremental)
Product
Optical Encoders
Encoder Type
Optical
Built in Switch
No
Product Status
Active
RoHS
RoHS Compliant
Shaft Length
9.53 mm
Number of Detents
32 Detent
Number of Channels
2 Channel
Technology
Rotary
Voltage - Supply
5V
Detent
Yes
REACH Status
REACH Unaffected
Mfr
Grayhill Inc.
Maximum Operating Temperature
+ 85 C
RoHS Status
ROHS3 Compliant
Moisture Sensitivity Level (MSL)
1 (Unlimited)
Mounting Style
PCB Mount
Bushing Material
Zinc
Termination Style
PC Pin
Shaft Type
D / Flatted
Actuator Type
1/4" Dia Flatted End
ECCN
EAR99
Shaft Diameter
6.32 mm
Rotational Life (Cycles Min)
1M
Orientation
Vertical
Mounting Type
PCB, Through Hole
Size / Dimension
12.72 mm x 12.7 mm x 24.82 mm
Minimum Operating Temperature
- 40 C
Series
62S
Type
Incremental
With Switch
Without Switch
Bushing Size
3/8 in x 0.312 in
Operating Supply Voltage
5 VDC
Pulses per Revolution
32
HTSUS
8543.70.4500
Package
Bulk
USHTS
8543704500
Resolution
32 PPR
Base Product Number
62S11
62S11-M0-P Documents
Download datasheets 62S11-M0-P
