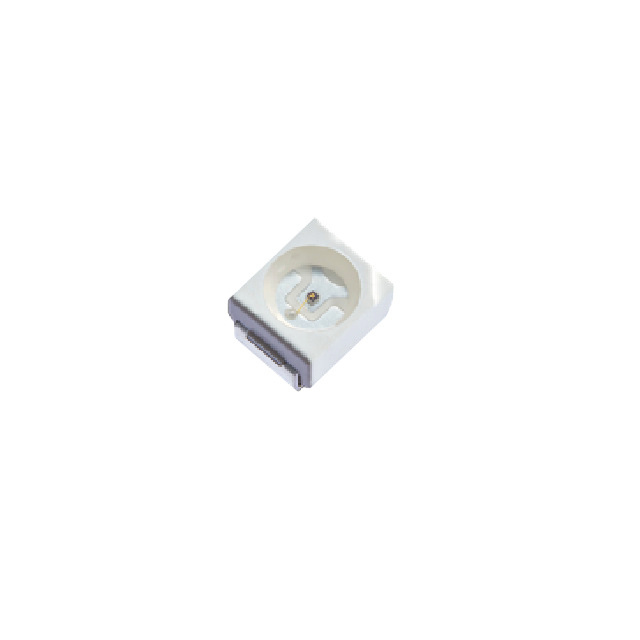

Kingbright_AA3528P3S
Kingbright_AA3528P3S
Kingbright

AA3528P3S

Sensors
Kingbright
AA3528P3S
54-AA3528P3S
Kingbright-AA3528P3S-datasheet-790184.pdf
Kingbright-AA3528P3S-datasheets-790184.pdf
SENSOR PHOTO TOP VIEW 2PLCC
In Stock : 19466

Not available

QUICK RFQ
ADD TO RFQ LIST
ampheo flow
  • Quantity
  • Unit Price
  • Ext. Price
    • 1+
    • $0.09999
    • $0.1
    • 10+
    • $0.09332
    • $0.93
    • 100+
    • $0.08666
    • $8.67
    • 1000+
    • $0.08333
    • $83.33
    ADD TO CART
    QUICK ORDER
    $0.09999    $0.10
    Description Tech Specifications Documents Shopping Guide

    Tech Specifications

    Number of Channels per Chip
    1
    Fabrication Technology
    NPN Transistor
    Product
    Phototransistors
    PPAP
    No
    Fall Time
    15 us
    Product Status
    Active
    Voltage - Collector Emitter Breakdown (Max)
    30 V
    RoHS
    RoHS Compliant
    Automotive
    No
    Supplier Package
    SMD
    Package / Case
    2-PLCC
    REACH Status
    REACH Unaffected
    Maximum Collector-Emitter Saturation Voltage (V)
    0.8
    Lens Shape Type
    Flat
    EU RoHS
    Compliant
    Moisture Sensitivity Level (MSL)
    3 (168 Hours)
    Operating Temperature
    -40°C ~ 85°C (TA)
    Collector-Emitter Breakdown Voltage
    30 V
    Maximum Collector Current (mA)
    0.4(Typ)
    Maximum Fall Time (ns)
    15000(Typ)
    ECCN
    EAR99
    Orientation
    Top View
    Mounting Type
    Surface Mount
    Standard Package Name
    SMD
    Wavelength
    940 nm
    Maximum Emitter-Collector Voltage (V)
    5
    Pin Count
    2
    Mounting
    Surface Mount
    Lens Color/Style
    Water, Clear
    Rise Time
    15 us
    Moisture Sensitive
    Yes
    Viewing Orientation
    Top View
    Peak Wavelength (nm)
    940
    Collector- Emitter Voltage VCEO Max
    30 V
    HTSUS
    8541.49.7080
    Package
    Tape & Reel (TR)
    USHTS
    8541497080
    Maximum On-State Collector Current
    400 uA
    PCB changed
    2
    HTS
    8541.41.00.00
    Viewing Angle
    -
    Maximum Collector-Emitter Voltage (V)
    30
    ECCN (US)
    EAR99
    Maximum Power Dissipation (mW)
    100
    Current - Dark (Id) (Max)
    100 nA
    Minimum Operating Temperature (°C)
    -40
    Maximum Operating Temperature (°C)
    85
    Phototransistor Type
    Phototransistor
    Package Height
    1.8
    Collector-Emitter Saturation Voltage
    800 mV
    Mfr
    Kingbright
    Polarity
    NPN
    Height
    1.9 mm
    Maximum Operating Temperature
    + 85 C
    Maximum Dark Current (nA)
    100
    Width
    2.8 mm
    RoHS Status
    ROHS3 Compliant
    Mounting Style
    SMD/SMT
    Maximum Rise Time (ns)
    15000(Typ)
    Material
    Silicon
    Package Length
    3.2
    Minimum Operating Temperature
    - 40 C
    Series
    -
    Type
    Chip
    Length
    3.5 mm
    Power - Max
    100 mW
    Part Status
    Active
    Package Width
    2.8
    Pd - Power Dissipation
    100 mW
    Dark Current
    100 nA
    Base Product Number
    AA3528

    AA3528P3S Documents

    Download datasheets AA3528P3S
