ACS716KLATR-12CB-T
Sensors
ACS716KLATR-12CB-T
54-ACS716KLATR-12CB-T

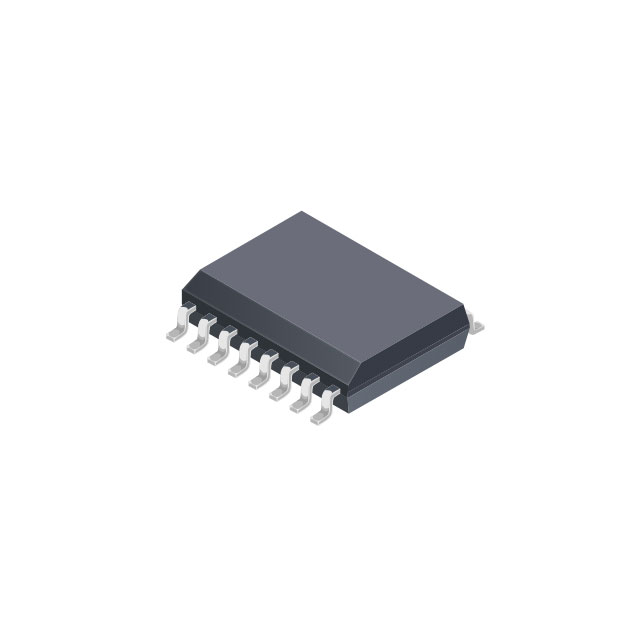

SENSOR CURRENT HALL 12.5A AC/DC
In Stock : 12682
Not available
QUICK RFQ
ADD TO RFQ LIST
- 1+
- $3.90520
- $3.91
- 10+
- $3.27190
- $32.72
- 100+
- $3.06080
- $306.08
- 1000+
- $2.95526
- $2955.26
ADD TO CART
QUICK ORDER
$3.90520
$3.91
Tech Specifications
Polarization
Bidirectional
Typical Response Time (us)
4
Module/IC Classification
IC
PPAP
No
Sensitivity (mV/A)
37
Product Status
Not For New Designs
RoHS
RoHS Compliant
Automotive
No
Current - Sensing
12.5A
Supplier Package
SOIC W
Package / Case
16-SOIC (0.295", 7.50mm Width)
Number of Channels
1
Sensor Type
Hall Effect, Open Loop
Voltage - Supply
3V ~ 3.6V
REACH Status
REACH Unaffected
Maximum Operating Supply Voltage (V)
3.6
EU RoHS
Compliant
Typical RMS Primary Current (A)
±12.5
Moisture Sensitivity Level (MSL)
3 (168 Hours)
Accuracy (%)
±6.5
Operating Temperature
-40°C ~ 125°C
For Measuring
AC/DC
ECCN
EAR99
Mounting Type
Surface Mount
Standard Package Name
SO
Pin Count
16
Mounting
Surface Mount
Moisture Sensitive
Yes
Linearity
±0.25%
Lead Shape
Gull-wing
Typical Operating Supply Voltage (V)
3.3
HTSUS
8542.39.0001
Package
Tape & Reel (TR)
USHTS
8542390060
PCB changed
16
HTS
COMPONENTS
Output Type
Ratiometric
Response Time
4µs
ECCN (US)
EAR99
Current - Supply (Max)
11mA
Sensing Current Type
AC|DC
Supply Voltage - Min
3 V
Supplier Device Package
16-SOIC
Minimum Operating Temperature (°C)
-40
Maximum Operating Temperature (°C)
125
Accuracy
±2.7%
Output
Ratiometric, Voltage
Package Height
2.35(Max)
Mfr
Allegro MicroSystems
Maximum Operating Temperature
+ 125 C
Supply Voltage - Max
3.6 V
RoHS Status
ROHS3 Compliant
Current Rating
9 mA
Package Length
10.3
Minimum Operating Temperature
- 40 C
Series
ACS716
Type
Open Loop
Sensitivity
37mV/A
Operating Supply Voltage
3 V to 3.6 V
Part Status
Active
Frequency
DC ~ 120kHz
Package Width
7.5
Base Product Number
ACS716
Minimum Operating Supply Voltage (V)
3
