Allegro MicroSystems

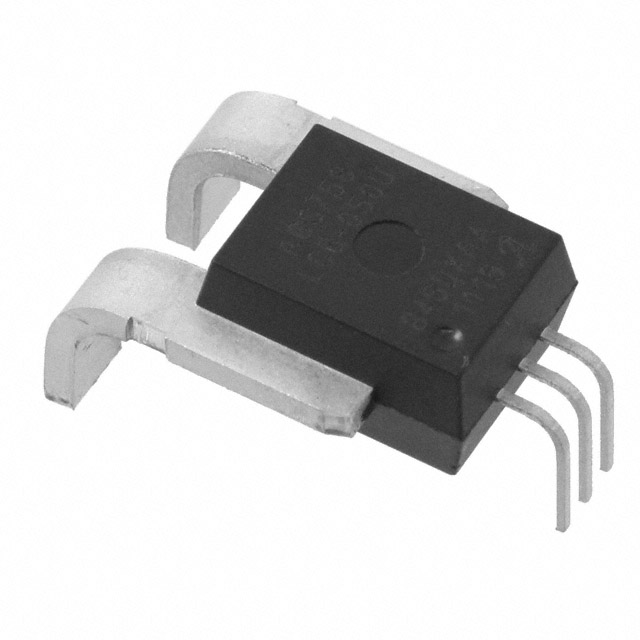

ACS770ECB-200B-PFF-T
Sensors
ACS770ECB-200B-PFF-T
54-ACS770ECB-200B-PFF-T
SENSOR CURRENT HALL 200A AC/DC
In Stock : 5327
Not available
QUICK RFQ
ADD TO RFQ LIST
- 1+
- $9.91282
- $9.91
- 10+
- $8.63438
- $86.34
- 30+
- $7.85606
- $235.68
- 100+
- $7.20194
- $720.19
ADD TO CART
QUICK ORDER
$9.91282
$9.91
Tech Specifications
Polarization
Bidirectional
Typical Response Time (us)
4.6
Module/IC Classification
IC
PPAP
Unknown
Sensitivity (mV/A)
10
Product Status
Active
RoHS
RoHS Compliant
Automotive
Yes
Current - Sensing
200A
Supplier Package
Case CB-PFF
Package / Case
5-CB Formed Leads, PFF
Number of Channels
1
Sensor Type
Hall Effect, Open Loop
Voltage - Supply
5V
REACH Status
REACH Unaffected
Maximum Operating Supply Voltage (V)
5.5
EU RoHS
Compliant
Typical RMS Primary Current (A)
±200
Moisture Sensitivity Level (MSL)
1 (Unlimited)
Accuracy (%)
±0.5
Operating Temperature
-40°C ~ 85°C
For Measuring
AC/DC
ECCN
EAR99
Supplier Temperature Grade
Automotive
Mounting Type
Through Hole
Pin Count
5
Mounting
Through Hole
Moisture Sensitive
Yes
Linearity
±1%
Typical Operating Supply Voltage (V)
5
HTSUS
8542.39.0001
Package
Tube
USHTS
8542390060
PCB changed
5
HTS
8542.39.00.60
Output Type
Analog
Response Time
4.6µs
ECCN (US)
EAR99
Current - Supply (Max)
15mA
Sensing Current Type
DC
Supply Voltage - Min
4.5 V
Supplier Device Package
5-CB Module
Minimum Operating Temperature (°C)
-40
Maximum Operating Temperature (°C)
85
Maximum Output Voltage (V)
25
Accuracy
±0.6%
Output
Ratiometric, Voltage
Package Height
7
Mfr
Allegro MicroSystems
Maximum Operating Temperature
+ 85 C
Supply Voltage - Max
5.5 V
RoHS Status
ROHS3 Compliant
Current Rating
10 mA
Package Length
10
Minimum Operating Temperature
- 40 C
Series
ACS770
Type
Open Loop
Sensitivity
10mV/A
Operating Supply Voltage
5 V
Part Status
Active
Frequency
DC ~ 120kHz
Package Width
13
Base Product Number
ACS770
Minimum Operating Supply Voltage (V)
4.5
ACS770ECB-200B-PFF-T Documents
Download datasheets ACS770ECB-200B-PFF-T
