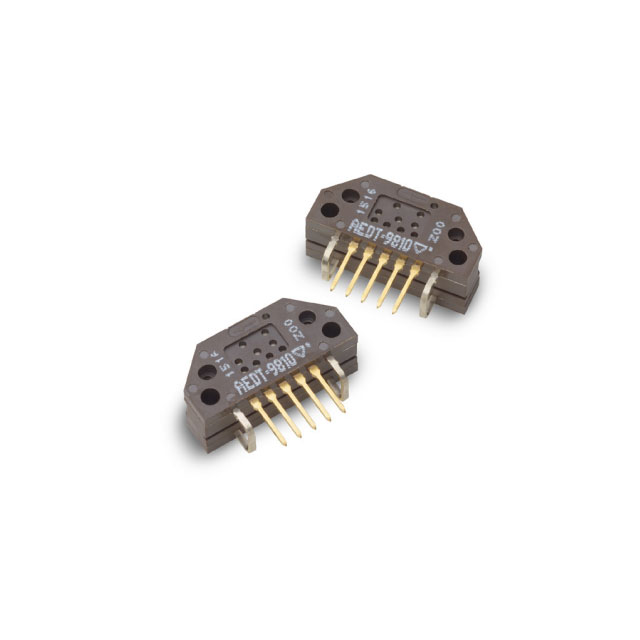

ROTARY ENCODER OPTICAL 1000PPR
In Stock : Please Submit RFQ TO US
Not available
QUICK RFQ
ADD TO RFQ LIST
Tech Specifications
Bushing Thread
-
Output Type
Quadrature with Index (Incremental)
Product
Optical Encoders
Encoder Type
Optical
Built in Switch
No
Product Status
Active
RoHS
RoHS Compliant
Shaft Length
-
Number of Detents
No Detent
Number of Channels
3 Channel
Technology
Rotary
Voltage - Supply
4.5V ~ 5.5V
Detent
No
REACH Status
REACH Unaffected
Mfr
Broadcom Limited
Maximum Operating Temperature
+ 115 C
RoHS Status
ROHS3 Compliant
Moisture Sensitivity Level (MSL)
1 (Unlimited)
Mounting Style
PCB Mount
Bushing Material
-
Termination Style
Terminal Pins
Shaft Type
No Shaft
Actuator Type
Codewheel Not Included
ECCN
EAR99
Shaft Diameter
-
Rotational Life (Cycles Min)
-
Orientation
User Selectable
Mounting Type
Chassis Mount
Size / Dimension
26.42 mm x 10.16 mm x 20.7 mm
Minimum Operating Temperature
- 40 C
Series
AEDT-981x
Type
Incremental
With Switch
Without Switch
Operating Supply Voltage
5 VDC
Pulses per Revolution
1000
HTSUS
8543.70.4500
Package
Bulk
Accessory Type
-
USHTS
8543704500
Resolution
1000 PPR
Base Product Number
AEDT-9810
