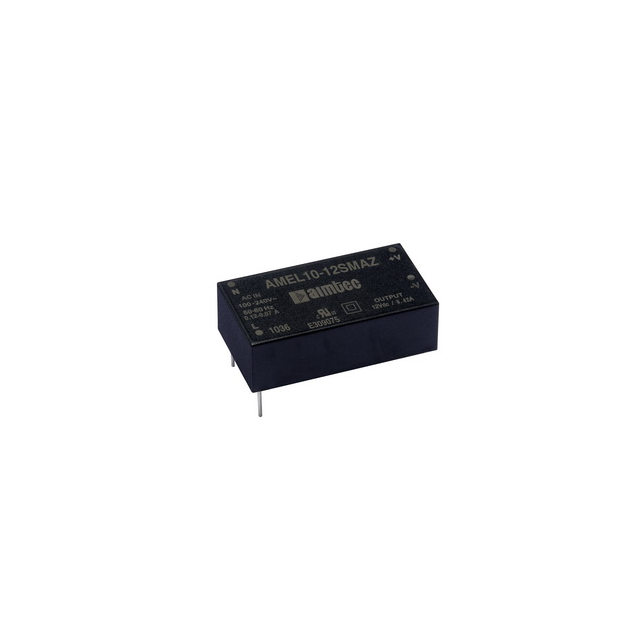

AMEL10-12SAZ
External/Internal AC DC Converters
AMEL10-12SAZ
47-AMEL10-12SAZ
AMEL10-12SAZ
In Stock : 7
Not available
QUICK RFQ
ADD TO RFQ LIST
- 1+
- $50.30660
- $50.31
- 10+
- $48.04267
- $480.43
- 100+
- $41.49560
- $4149.56
- 1000+
- $40.25080
- $40250.8
ADD TO CART
QUICK ORDER
$50.30660
$50.31
AMEL10-12SAZ Description
AMEL10-AZ (10W) Series, ROHS3 Compliant
Tech Specifications
Minimum Isolation Voltage
3000VAC
PPAP
No
Minimum AC Input Voltage (V)
90
Product Status
Active
Automotive
No
Current - Output (Max)
840mA
Power Supply Color
Black
Line Regulation
±1%
Package / Case
5-DIP Module, 4 Leads
Efficiency
80%
Maximum Input Current (A)
0.23
Product Weight (g)
70
Maximum DC Input Voltage (V)
430
EU RoHS
Compliant
Moisture Sensitivity Level (MSL)
1 (Unlimited)
Input Frequency (Hz)
47 to 440
Input/Output Type
AC/DC
Operating Temperature
-40°C ~ 80°C (With Derating)
Voltage - Output 2
-
Voltage - Output 3
-
Voltage - Output 4
-
Approval Agency
CB, CE, cURus
ECCN
EAR99
Voltage - Output 1
12V
Mounting Type
Through Hole
Size / Dimension
2.22" L x 1.21" W x 0.99" H (56.5mm x 30.9mm x 25.1mm)
Weight
0.154 lb (70.00 g)
Pin Count
4
Mounting
Through Hole
Power (Watts)
10 W
Power Indicator
No
Output Power (W)
10
Minimum DC Input Voltage (V)
130
Medical
No
Output Voltage (V)
12
HTSUS
8504.40.9510
Package
Tube
Load Regulation
±1%
Output Current (A)
0.84
Efficiency (%)
81
PCB changed
4
HTS
EA
Output Type
Fixed
Ripple & Noise
100mV
ECCN (US)
EAR99
Configurable
No
Minimum Operating Temperature (°C)
-40
Maximum Operating Temperature (°C)
80
Package Height
25.1
Maximum AC Input Voltage (V)
305
Mfr
aimtec
Style
Enclosed
Tolerance (%)
±2(Typ)
Features
-
RoHS Status
ROHS3 Compliant
Voltage - Input
90 ~ 305 VAC
Applications
ITE (Commercial)
Package Length
30.86
Number of Outputs
1
Series
AMEL10-AZ (10W)
Type
Enclosed
Part Status
Active
Package Width
56.46
Base Product Number
AMEL10
AMEL10-12SAZ Documents
Download datasheets AMEL10-12SAZ
