Aimtec

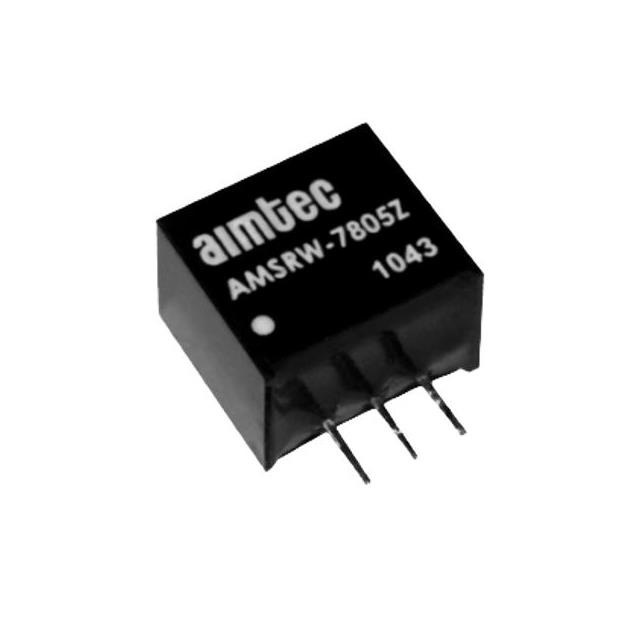

AMSRW-7805Z
External/Internal DC DC Converters
AMSRW-7805Z
50-AMSRW-7805Z
AMSRW-7805Z
In Stock : 40
Not available
QUICK RFQ
ADD TO RFQ LIST
- 1+
- $16.69400
- $16.69
- 10+
- $15.94267
- $159.43
- 100+
- $14.08390
- $1408.39
- 1000+
- $13.66140
- $13661.4
ADD TO CART
QUICK ORDER
$16.69400
$16.69
AMSRW-7805Z Description
AMSRW-78Z (7.5W) Series, ROHS3 Compliant
Tech Specifications
PPAP
No
Product Status
Active
Automotive
No
Current - Output (Max)
500mA
Voltage - Input (Min)
9V
Supplier Package
SIP
Line Regulation
1%
Package / Case
3-SIP Module
Switching Frequency (kHz)
800
Efficiency
80%
Maximum Input Voltage (V)
72
Product Weight (g)
2
EU RoHS
Compliant
Moisture Sensitivity Level (MSL)
1 (Unlimited)
Input/Output Type
DC/DC
Operating Temperature
-40°C ~ 85°C
Voltage - Output 2
-
Voltage - Output 3
-
Voltage - Output 4
-
Approval Agency
CE
ECCN
EAR99
Voltage - Output 1
5V
Mounting Type
Through Hole
Size / Dimension
0.46" L x 0.29" W x 0.40" H (11.7mm x 7.5mm x 10.2mm)
Standard Package Name
SIP
Pin Count
3
Mounting
Through Hole
Power (Watts)
2.5 W
Control Features
-
Lead Shape
Through Hole
Output Power (W)
7.5
Output Voltage (V)
5
HTSUS
8504.40.9580
Package
Tube
Load Regulation
1%
Output Current (A)
0.5
Efficiency (%)
80
Minimum Input Voltage (V)
9
PCB changed
3
HTS
EA
Output Type
Fixed
Voltage - Input (Max)
72V
ECCN (US)
EAR99
Supplier Device Package
-
Minimum Operating Temperature (°C)
-40
Maximum Operating Temperature (°C)
85
Package Height
10.2
Mfr
aimtec
Features
-
RoHS Status
ROHS3 Compliant
Applications
ITE (Commercial)
Package Length
11.68
Number of Outputs
1
Series
AMSRW-78Z (7.5W)
Type
Non-Isolated PoL Module
Part Status
Active
Isolation
Non-Isolated
Switching Regulator
Yes
Package Width
7.5
Base Product Number
AMSRW
AMSRW-7805Z Documents
Download datasheets AMSRW-7805Z
