Bourns, Inc.
BN-LG10Y7R0MYB
Sensors
BN-LG10Y7R0MYB
54-BN-LG10Y7R0MYB

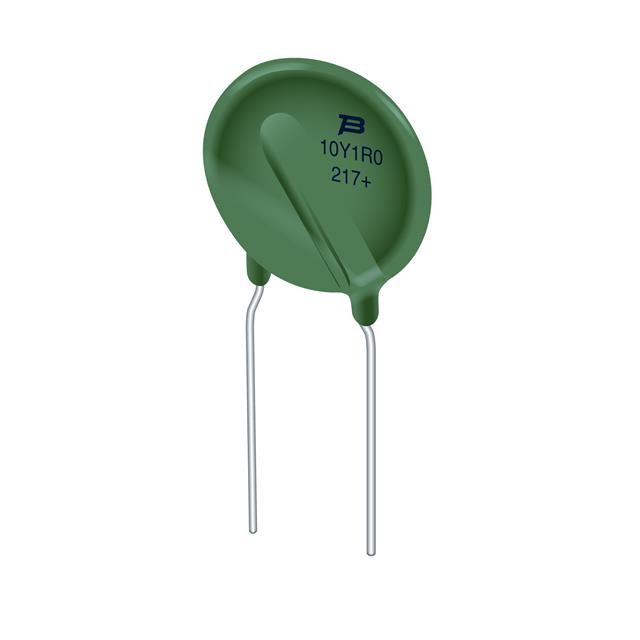

THERMISTOR NTC ICL 10MM 7 OHM
In Stock : 494
Not available
QUICK RFQ
ADD TO RFQ LIST
- 1+
- $0.46460
- $0.46
- 10+
- $0.40400
- $4.04
- 100+
- $0.35350
- $35.35
- 1000+
- $0.31310
- $313.1
ADD TO CART
QUICK ORDER
$0.46460
$0.46
Tech Specifications
Power Rating
2.3 W
Lead Diameter
0.8 mm
PPAP
No
Lead Spacing
5 mm
Product Status
Active
RoHS
RoHS Compliant
Automotive
No
Tradename
POWrTherm
Product Length (mm)
12.5
Package / Case
Disc 10mm
REACH Status
REACH Unaffected
EU RoHS
Compliant
B25/50
-
Moisture Sensitivity Level (MSL)
Not Applicable
Operating Temperature
-40°C ~ 170°C
Construction
Radial
B0/50
-
Thermal Time Constant (s)
40
Termination Style
Radial
ECCN
EAR99
Thermal Time Constant Range (s)
40 to 50
Percentage of Resistance Tolerance @ 25C (%)
±20
B Value Tolerance
-
Mounting Type
Through Hole
Mounting
Through Hole
Resistance
7 Ohms
Number of Terminals
2
Resistance Range @ 25C (Ohm)
7 to 50
Resistance in Ohms @ 25°C
7
HTSUS
8533.40.8070
Package
Bag
USHTS
8533408070
Application
Inrush Current Limiter
B25/85
-
HTS
8533.40.80.70
ECCN (US)
EAR99
Resistance Tolerance
±20%
B25/100
-
Percentage of Resistance Tolerance Range @ 25C (%)
±20 to ±25
Minimum Operating Temperature (°C)
-40
Maximum Operating Temperature (°C)
170
B25/75
-
Mfr
Bourns Inc.
Height
17.5 mm
Product Depth (mm)
7.5
Maximum Operating Temperature
+ 170 C
Width
7.5 mm
Diameter
10 mm
RoHS Status
ROHS3 Compliant
Resistance @ 25C (Ohm)
7
Mounting Style
PCB Mount
Tolerance
20 %
Current Rating
3 A
Maximum Power Rating (W)
2.3
Minimum Operating Temperature
- 40 C
Series
BN-LG10Y
Length - Lead Wire
0.94" (24.00mm)
Terminal Pitch (mm)
5
Type
NTC
Seated Plane Height (mm)
18.5
Length
12.5 mm
Power - Max
2.3 W
Product Height (mm)
18.5
