Cincon

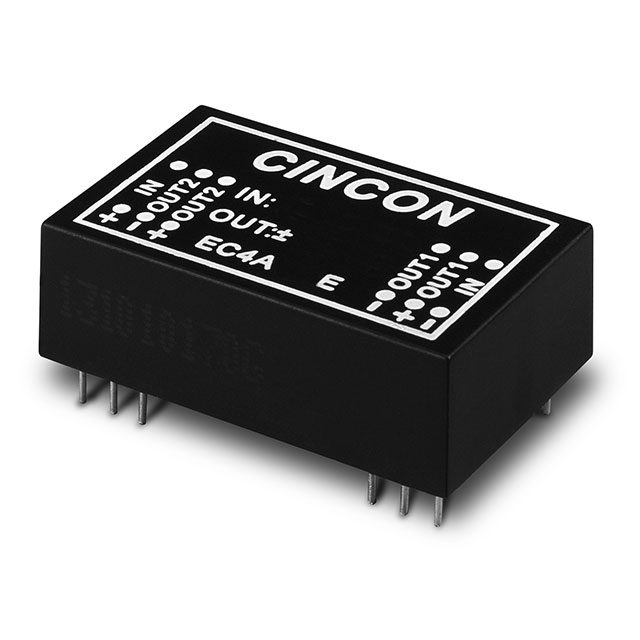

EC4A03-E
External/Internal DC DC Converters
EC4A03-E
50-EC4A03-E
EC4A03-E
In Stock : Please Submit RFQ TO US
Not available
QUICK RFQ
ADD TO RFQ LIST
EC4A03-E Description
EC4A-E (6W) Series, ROHS3 Compliant
Tech Specifications
Product
Isolated
Product Status
Active
RoHS
RoHS Compliant
Current - Output (Max)
400mA
Industry
Industrial
Voltage - Input (Min)
9V
Package / Case
24-DIP Module, 14 Leads
Efficiency
85%
REACH Status
REACH Unaffected
Moisture Sensitivity Level (MSL)
1 (Unlimited)
Isolation Voltage
500 V
Operating Temperature
-40°C ~ 100°C (With Derating)
Output Power
6 W
Voltage - Output 2
-
Voltage - Output 3
-
Voltage - Output 4
-
Voltage - Isolation
500 V
Approval Agency
CE, cURus
ECCN
EAR99
Input Voltage
9 V to 18 V
Voltage - Output 1
15V
Mounting Type
Through Hole
Size / Dimension
1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2mm)
Power (Watts)
6 W
Control Features
-
Standard Number
60950-1
HTSUS
8504.40.9580
Package
Tube
USHTS
8504409580
Voltage - Input (Max)
18V
Output Current-Channel 1
400 mA
Input Voltage - Max
18 V
Supplier Device Package
-
Input Voltage - Min
9 V
Mfr
Cincon Electronics Co. LTD
Height
10.2 mm (0.402 in)
Features
SCP, UVLO
Maximum Operating Temperature
+ 85 C
Width
20.3 mm (0.799 in)
RoHS Status
ROHS3 Compliant
Mounting Style
Through Hole
Output Voltage-Channel 1
15 V
Applications
ITE (Commercial)
Input Voltage, Nominal
12 V
Minimum Operating Temperature
- 40 C
Number of Outputs
1
Series
EC4A-E (6W)
Type
Isolated Module
Length
31.8 mm (1.252 in)
Base Product Number
EC4A03
EC4A03-E Documents
Download datasheets EC4A03-E
