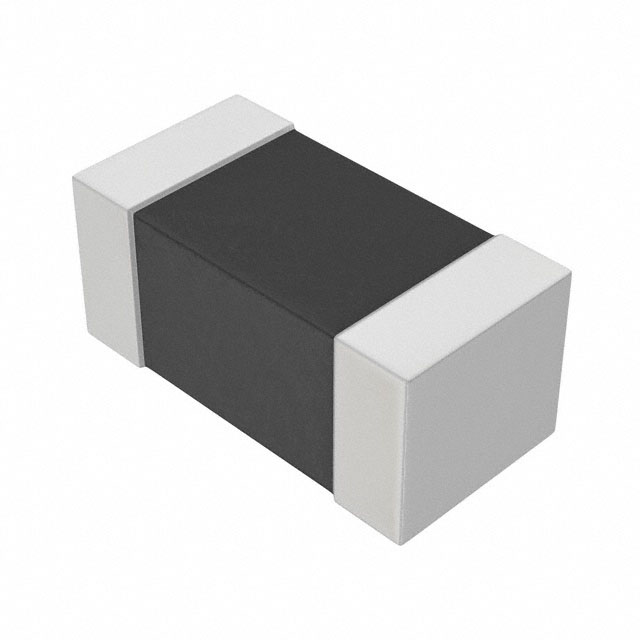

ERT-J1VP473H
Sensors
ERT-J1VP473H
54-ERT-J1VP473H
MULTILAYER NTC CHIP THERMISTOR
In Stock : 4102
Not available
QUICK RFQ
ADD TO RFQ LIST
- 1+
- $0.05160
- $0.05
- 10+
- $0.04988
- $0.5
- 100+
- $0.04902
- $4.9
- 1000+
- $0.04816
- $48.16
ADD TO CART
QUICK ORDER
$0.05160
$0.05
ERT-J1VP473H Description
Panasonic ERT-J Serie
Tech Specifications
Power Rating
100 mW
Unit Weight
0.000145 oz
Sensitivity Index Range (K)
4100 to 4300
PPAP
No
Product Status
Active
RoHS
RoHS Compliant
Automotive
No
Product Length (mm)
1.6
Package / Case
0603 (1608 Metric)
EU RoHS
Compliant
B25/50
4100K
Moisture Sensitivity Level (MSL)
1 (Unlimited)
Operating Temperature
-40°C ~ 125°C
Construction
Solder Pad
B0/50
-
B Tolerance
2 %
Termination Style
SMD/SMT
ECCN
EAR99
Percentage of Resistance Tolerance @ 25C (%)
±3
B Value Tolerance
±2%
Mounting Type
Surface Mount
Mounting
Surface Mount
Resistance
47 kOhms
Number of Terminals
2
Resistance Range @ 25C (Ohm)
25000 to 120000
Resistance in Ohms @ 25°C
47k
HTSUS
8533.40.8070
Package
Tape & Reel (TR)
USHTS
8533408070
Application
Temperature Compensation|Temperature Detection
B25/85
4150K
B Parameter
4100 K
HTS
8533.40.80.70
ECCN (US)
EAR99
Resistance Tolerance
±3%
B25/100
-
Percentage of Resistance Tolerance Range @ 25C (%)
±2 to ±5
Minimum Operating Temperature (°C)
-40
Maximum Operating Temperature (°C)
125
B25/75
-
Mfr
Panasonic Electronic Components
Height
0.8 mm
Product Depth (mm)
0.8
Maximum Operating Temperature
+ 125 C
Width
0.8 mm
RoHS Status
ROHS3 Compliant
Resistance @ 25C (Ohm)
47000
Mounting Style
PCB Mount
Tolerance
3 %
Maximum Power Rating (W)
100m
Minimum Operating Temperature
- 40 C
Series
ERT-J
Length - Lead Wire
-
Type
NTC
Length
1.6 mm
Power - Max
100 mW
Product Height (mm)
0.8
Part Status
Active
Beta Value
B25/50
Base Product Number
ERT-J1
Sensitivity Index (K)
4150
ERT-J1VP473H Documents
Download datasheets ERT-J1VP473H
