Panasonic
ERT-JZEP683H
Sensors
ERT-JZEP683H
54-ERT-JZEP683H

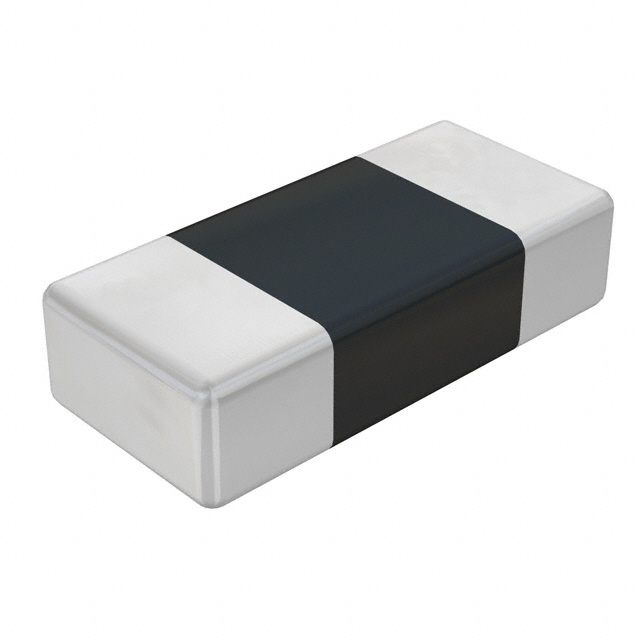

MULTILAYER NTC CHIP THERMISTOR
In Stock : 15038
Not available
QUICK RFQ
ADD TO RFQ LIST
- 1+
- $0.02855
- $0.03
- 10+
- $0.02538
- $0.25
- 100+
- $0.02260
- $2.26
- 1000+
- $0.02221
- $22.21
ADD TO CART
QUICK ORDER
$0.02855
$0.03
ERT-JZEP683H Description
Panasonic ERT-J Serie
Tech Specifications
Power Rating
33 mW
Sensitivity Index Range (K)
4100 to 4300
PPAP
No
Product Status
Active
RoHS
RoHS Compliant
Automotive
No
Product Length (mm)
0.6
Package / Case
0201 (0603 Metric)
EU RoHS
Compliant
B25/50
4050K
Moisture Sensitivity Level (MSL)
1 (Unlimited)
Operating Temperature
-40°C ~ 125°C
Construction
Solder Pad
B0/50
-
Termination Style
SMD/SMT
ECCN
EAR99
Percentage of Resistance Tolerance @ 25C (%)
±3
B Value Tolerance
±2%
Mounting Type
Surface Mount
Mounting
Surface Mount
Resistance
68 kOhms
Number of Terminals
2
Resistance Range @ 25C (Ohm)
25000 to 120000
Resistance in Ohms @ 25°C
68k
HTSUS
8533.40.8070
Package
Tape & Reel (TR)
USHTS
8533408070
Application
Temperature Compensation|Temperature Detection
B25/85
4100K
B Parameter
4100 K
HTS
8533.40.80.70
ECCN (US)
EAR99
Resistance Tolerance
±3%
B25/100
-
Percentage of Resistance Tolerance Range @ 25C (%)
±2 to ±5
Minimum Operating Temperature (°C)
-40
Maximum Operating Temperature (°C)
125
B25/75
-
Mfr
Panasonic Electronic Components
Height
0.3 mm
Product Depth (mm)
0.3
Maximum Operating Temperature
+ 125 C
Width
0.3 mm
RoHS Status
ROHS3 Compliant
Resistance @ 25C (Ohm)
68000
Mounting Style
PCB Mount
Tolerance
3 %
Maximum Power Rating (W)
33m
Minimum Operating Temperature
- 40 C
Series
ERT-J
Length - Lead Wire
-
Type
NTC
Length
0.6 mm
Power - Max
33 mW
Product Height (mm)
0.3
Part Status
Active
Beta Value
B25/85
Base Product Number
ERT-JZEP
Sensitivity Index (K)
4100
ERT-JZEP683H Documents
Download datasheets ERT-JZEP683H
