Panasonic_EVE-VGHFL816B
Panasonic_EVE-VGHFL816B
Panasonic

EVE-VGHFL816B

Sensors
Panasonic
EVE-VGHFL816B
54-EVE-VGHFL816B
Panasonic-EVE-VGHFL816B-datasheet-687783.pdf
Panasonic-EVE-VGHFL816B-datasheets-687783.pdf

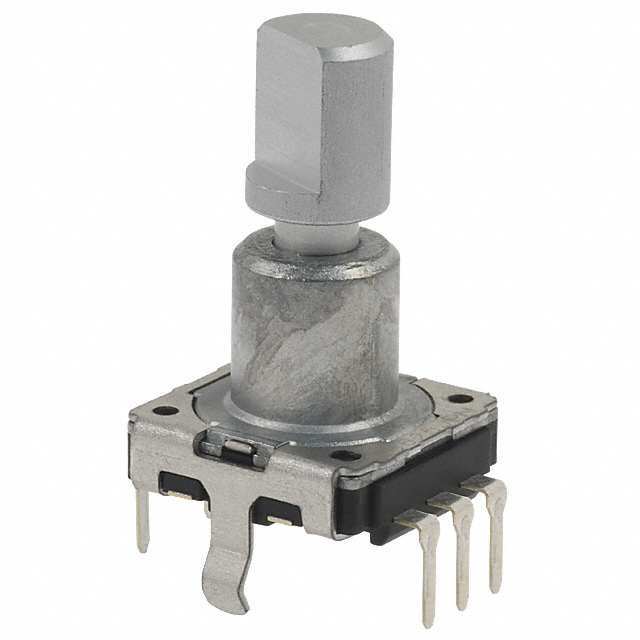

ROTARY ENCODER MECHANICAL 16PPR
In Stock : 406

Not available

QUICK RFQ
ADD TO RFQ LIST
ampheo flow
  • Quantity
  • Unit Price
  • Ext. Price
    • 1+
    • $3.56625
    • $3.57
    • 10+
    • $3.26726
    • $32.67
    • 100+
    • $3.06440
    • $306.44
    • 1000+
    • $2.87220
    • $2872.2
    ADD TO CART
    QUICK ORDER
    $3.56625    $3.57
    Description Tech Specifications Documents Shopping Guide

    Tech Specifications

    Output Type
    Quadrature (Incremental)
    Product
    Magnetic Encoders
    Encoder Type
    Mechanical
    Built in Switch
    Yes
    Product Status
    Not For New Designs
    Number of Detents
    32 Detent
    Number of Channels
    2 Channel
    Technology
    Rotary
    Voltage - Supply
    -
    Detent
    Yes
    REACH Status
    REACH Unaffected
    Mfr
    Panasonic Electronic Components
    RoHS Status
    ROHS3 Compliant
    Moisture Sensitivity Level (MSL)
    Not Applicable
    Mounting Style
    PCB Mount
    Termination Style
    PC Pin
    Shaft Type
    D / Flatted
    Actuator Type
    6mm Dia Flatted End
    ECCN
    EAR99
    Shaft Diameter
    6 mm
    Rotational Life (Cycles Min)
    30K
    Orientation
    Vertical
    Mounting Type
    PCB, Through Hole
    Series
    EVEV
    Type
    Incremental
    With Switch
    Push/Pull Switch
    Operating Supply Voltage
    10 VDC
    Life
    30000 Cycle
    Pulses per Revolution
    16
    HTSUS
    8543.70.4500
    Package
    Tray
    USHTS
    8543704500
    Resolution
    16 PPR
