TDK Micronas_HAL1820SF-A
TDK Micronas_HAL1820SF-A
TDK Micronas

HAL1820SF-A

Sensors
TDK Micronas
HAL1820SF-A
54-HAL1820SF-A
TDK Micronas-HAL1820SF-A-datasheet-804684.pdf
TDK Micronas-HAL1820SF-A-datasheets-804684.pdf

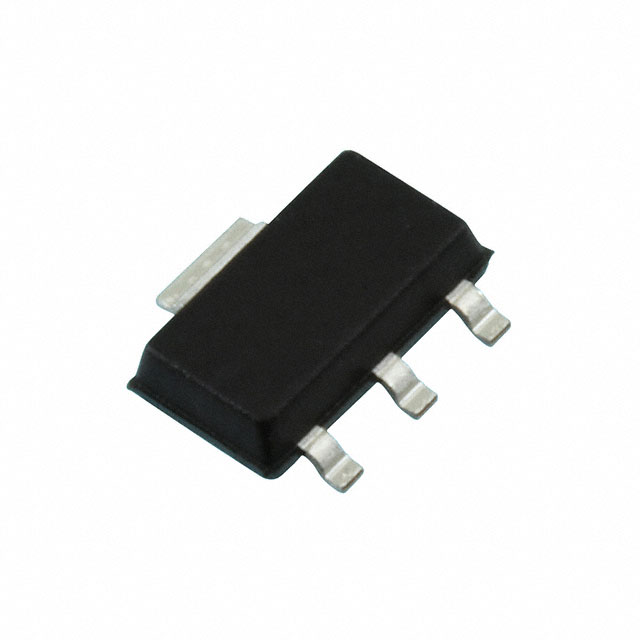

SENSOR HALL ANALOG SOT89B-1
In Stock : 3558

Not available

QUICK RFQ
ADD TO RFQ LIST
ampheo flow
  • Quantity
  • Unit Price
  • Ext. Price
    • 1+
    • $3.73060
    • $3.73
    • 10+
    • $3.63240
    • $36.32
    • 100+
    • $3.04334
    • $304.33
    • 1000+
    • $2.84699
    • $2846.99
    ADD TO CART
    QUICK ORDER
    $3.73060    $3.73
    Description Tech Specifications Documents Shopping Guide

    Tech Specifications

    Unit Weight
    0.001199 oz
    Release Point Min/Max (Brp)
    -
    Output Type
    Analog Voltage
    Maximum Output Current
    1 mA
    Current - Supply (Max)
    10mA
    Product Status
    Obsolete
    RoHS
    RoHS Compliant
    Supply Voltage - Min
    4.5 V
    Current - Output (Max)
    1mA
    Supplier Device Package
    SOT-89B-1
    Operating Supply Current
    7 mA
    Package / Case
    TO-243AA, Variant
    Technology
    Hall Effect
    Voltage - Supply
    4.5V ~ 5.5V
    Bandwidth
    2.5kHz
    Mfr
    TDK-Micronas GmbH
    Features
    Selectable Scale
    Maximum Operating Temperature
    + 170 C
    Sensing Range
    ±20mT ~ ±160mT
    Supply Voltage - Max
    5.5 V
    Axis
    Single
    RoHS Status
    ROHS3 Compliant
    Moisture Sensitivity Level (MSL)
    1 (Unlimited)
    Mounting Style
    SMD/SMT
    Operating Temperature
    -40°C ~ 170°C (TJ)
    Termination Style
    SMD/SMT
    ECCN
    EAR99
    Mounting Type
    Surface Mount
    Minimum Operating Temperature
    - 40 C
    Series
    HAL®1820
    Operating Point Min/Max
    - 160 mT to + 160 mT
    Operating Supply Voltage
    5 V
    HTSUS
    8542.39.0001
    Package
    Tape & Reel (TR)
    USHTS
    8542390060
    Output Voltage
    4.9 V
    Resolution
    10 b
    Base Product Number
    HAL1820

    HAL1820SF-A Documents

    Download datasheets HAL1820SF-A
