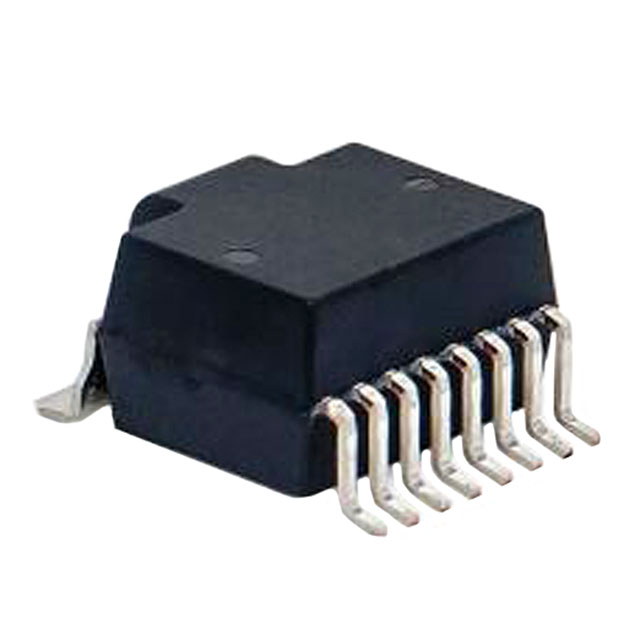

LEM USA, Inc._HMSR 20-SMS
LEM USA, Inc._HMSR 20-SMS
LEM USA, Inc.

HMSR 20-SMS

Sensors
LEM USA, Inc.
HMSR 20-SMS
54-HMSR 20-SMS
LEM USA, Inc.-HMSR 20-SMS-datasheet-766404.pdf
LEM USA, Inc.-HMSR 20-SMS-datasheets-766404.pdf
SURFACT MT, 20A SENSOR WITH HIGH
In Stock : 523

Not available

QUICK RFQ
ADD TO RFQ LIST
ampheo flow
  • Quantity
  • Unit Price
  • Ext. Price
    • 1+
    • $6.47662
    • $6.48
    • 200+
    • $2.58502
    • $517
    • 540+
    • $2.49890
    • $1349.41
    ADD TO CART
    QUICK ORDER
    $6.47662    $6.48
    Description Tech Specifications Documents Shopping Guide

    HMSR 20-SMS Description

    LEM USA, Inc. HMSR Serie

    Tech Specifications

    Unit Weight
    1.093493 oz
    Polarization
    Bidirectional
    Frequency Range
    300 kHz
    Output Type
    Digital, Analog
    Response Time
    -
    Current - Supply (Max)
    26mA
    Product Status
    Active
    RoHS
    RoHS Compliant
    Supply Voltage - Min
    4.5 V
    Current - Sensing
    20A
    Accuracy
    0.75 %
    Package / Case
    16-PowerSOIC (0.295", 7.50mm Width), 10 Leads
    Number of Channels
    1
    Sensor Type
    Hall Effect, Open Loop
    Voltage - Supply
    4.5V ~ 5.5V
    Output
    Ratiometric, Voltage
    REACH Status
    REACH Unaffected
    Mfr
    LEM USA Inc.
    Height
    6.1 mm
    Maximum Operating Temperature
    + 125 C
    Supply Voltage - Max
    5.5 V
    Width
    9.3 mm
    RoHS Status
    ROHS3 Compliant
    Moisture Sensitivity Level (MSL)
    1 (Unlimited)
    Operating Temperature
    -40°C ~ 125°C (TA)
    For Measuring
    AC/DC
    Current Rating
    20 A
    ECCN
    EAR99
    Mounting Type
    Surface Mount
    Minimum Operating Temperature
    - 40 C
    Series
    HMSR
    Type
    Current Transducer
    Sensitivity
    40mV/A
    Length
    10.32 mm
    Operating Supply Voltage
    5 V
    Linearity
    ±0.5%
    Frequency
    300kHz
    HTSUS
    8542.39.0001
    Package
    Tape & Reel (TR)
    USHTS
    8542390060
    Output Voltage
    2 V

    HMSR 20-SMS Documents

    Download datasheets HMSR 20-SMS
