LITEON

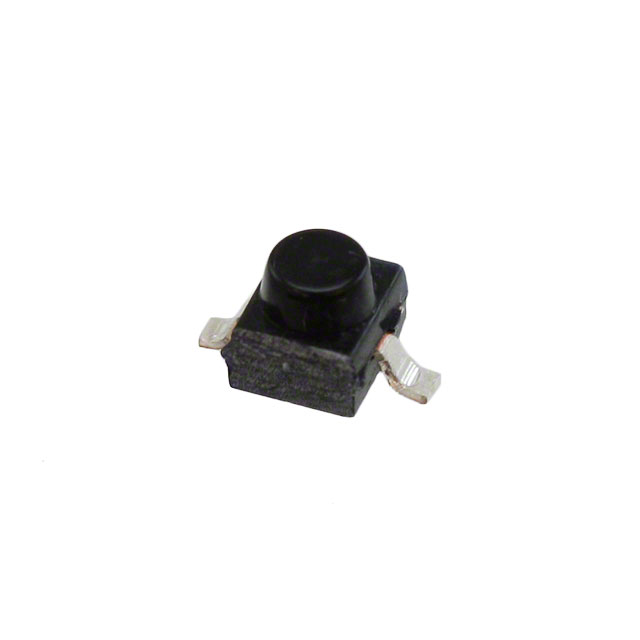

HSDL-5400#011
Sensors
HSDL-5400#011
54-HSDL-5400#011
SENSOR PHOTODIODE 875NM 2SMD GW
In Stock : Please Submit RFQ TO US
Not available
QUICK RFQ
ADD TO RFQ LIST
HSDL-5400#011 Description
LITEON HSDL-5400 Serie
Tech Specifications
Diode Type
PIN
PPAP
No
Product Status
Obsolete
Automotive
No
Supplier Package
SMD
Package / Case
2-SMD, Gull Wing
Photodiode Material
AlGaAs
Voltage - DC Reverse (Vr) (Max)
40 V
EU RoHS
Compliant
Moisture Sensitivity Level (MSL)
2A (4 Weeks)
Lens Type
Epoxy
Responsivity @ nm
-
Operating Temperature
-40°C ~ 85°C
Maximum Fall Time (ns)
7.5(Typ)
ECCN
EAR99
Mounting Type
Surface Mount
Standard Package Name
SMD
Wavelength
875nm
Pin Count
2
Mounting
Surface Mount
Lead Shape
No Lead
Current - Dark (Typ)
1nA
Peak Wavelength (nm)
875
HTSUS
8541.49.1050
Package
Tape & Reel (TR)
Maximum Light Current (uA)
1.6(Typ)
Spectral Range
770nm ~ 1000nm
PCB changed
2
HTS
8541.41.00.00
Response Time
-
Viewing Angle
110°
ECCN (US)
EAR99
Maximum Power Dissipation (mW)
150
Minimum Operating Temperature (°C)
-40
Maximum Operating Temperature (°C)
85
Active Area
0.15mm²
Package Height
2.41(Max)
Mfr
Lite-On Inc.
Polarity
Forward
Maximum Reverse Voltage (V)
40
Photodiode Type
PIN
Color - Enhanced
-
Maximum Dark Current (nA)
5
RoHS Status
ROHS3 Compliant
Maximum Forward Voltage (V)
0.8(Typ)
Maximum Rise Time (ns)
7.5(Typ)
Package Length
2.34(Max)
Series
HSDL-5400
Type
Chip
Part Status
Active
Package Width
2.16(Max)
Photo Sensitivity
0.5A/W
Base Product Number
HSDL-5400
HSDL-5400#011 Documents
Download datasheets HSDL-5400#011
