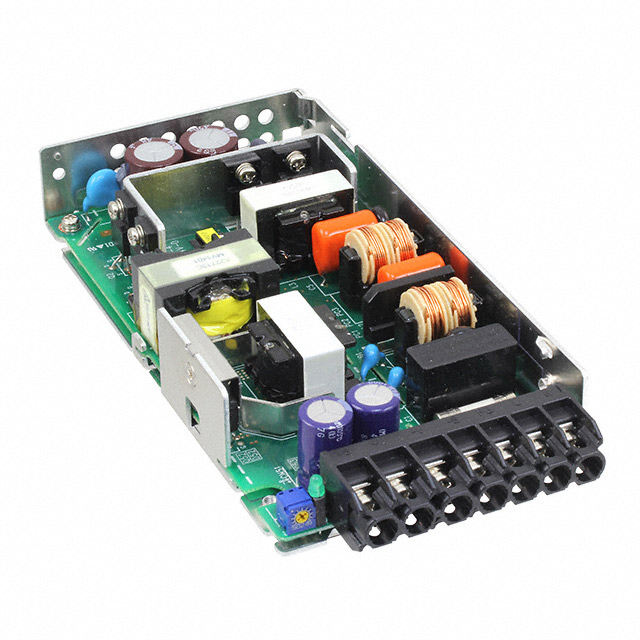

TDK-Lambda, Inc._HWS100A-24/HD
TDK-Lambda, Inc._HWS100A-24/HD
TDK-Lambda, Inc.

HWS100A-24/HD

External/Internal AC DC Converters
TDK-Lambda, Inc.
HWS100A-24/HD
47-HWS100A-24/HD
TDK-Lambda, Inc.-HWS100A-24/HD-datasheet-286803.pdf
TDK-Lambda, Inc.-HWS100A-24/HD-datasheets-286803.pdf
AC/DC CONVERTER 24V 108W
In Stock : 2

Not available

QUICK RFQ
ADD TO RFQ LIST
ampheo flow
  • Quantity
  • Unit Price
  • Ext. Price
    • 1+
    • $158.41000
    • $158.41
    • 10+
    • $148.66600
    • $1486.66
    • 25+
    • $137.69840
    • $3442.46
    • 50+
    • $129.16280
    • $6458.14
    ADD TO CART
    QUICK ORDER
    $158.41000    $158.41
    Description Tech Specifications Documents Shopping Guide

    HWS100A-24/HD Description

    Open Frame, Conformal Coated AC DC Converters 1 Output 24V 85 ~ 265 VAC, 120 ~ 370 VDC Input

    Tech Specifications

    Efficiency
    89%
    REACH Status
    REACH Unaffected
    Mfr
    TDK-Lambda
    Features
    Adjustable Output, PFC, Universal Input
    RoHS Status
    RoHS Compliant
    Voltage - Input
    85 ~ 265 VAC, 120 ~ 370 VDC
    Moisture Sensitivity Level (MSL)
    1 (Unlimited)
    Voltage - Output 6
    -
    Operating Temperature
    -10°C ~ 71°C (With Derating)
    Applications
    ITE (Commercial)
    Voltage - Output 2
    -
    Voltage - Output 3
    -
    Voltage - Output 4
    -
    Voltage - Isolation
    3 kV
    Approval Agency
    CE
    Minimum Load Required
    -
    ECCN
    EAR99
    Voltage - Output 1
    24V
    Mounting Type
    Chassis Mount
    Size / Dimension
    6.32" L x 1.12" W x 3.27" H (160.5mm x 28.5mm x 83.0mm)
    Number of Outputs
    1
    Series
    HWS/HD (100W)
    Power (Watts)
    108W
    Current - Output 1
    4.5 A
    Type
    Open Frame, Conformal Coated
    Packaging
    Bulk
    Part Status
    Active
    HTSUS
    8504.40.6018
    Base Product Number
    HWS100

    HWS100A-24/HD Documents

    Download datasheets HWS100A-24/HD
