TDK InvenSense

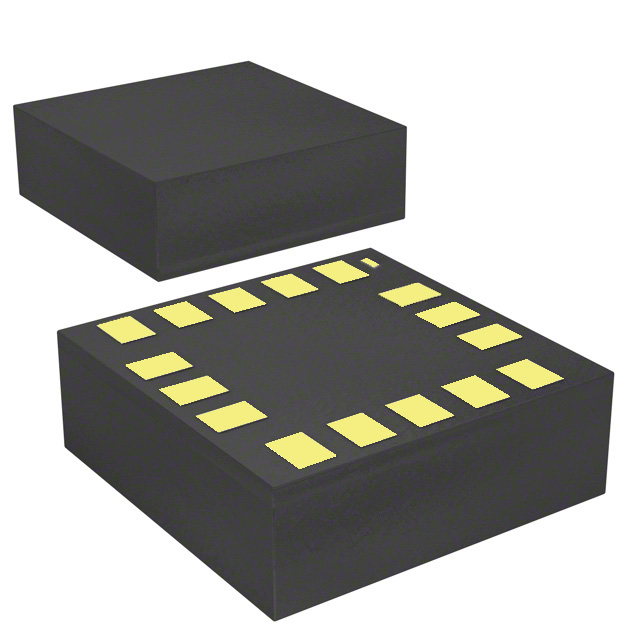

IAM-20380
Sensors
IAM-20380
54-IAM-20380
SENSOR GYROSCOPE
In Stock : 6915
Not available
QUICK RFQ
ADD TO RFQ LIST
- 1+
- $18.41638
- $18.42
ADD TO CART
QUICK ORDER
$18.41638
$18.42
IAM-20380 Description
SENSOR GYROSCOPE
Tech Specifications
Unit Weight
0.008861 oz
PPAP
Yes
Product Status
Active
RoHS
RoHS Compliant
Automotive
Yes
Tradename
SmartAutomotive
Supplier Package
LGA
Package / Case
16-WFLGA Module
Technology
MEMS
Sensor Type
3-axis
Voltage - Supply
1.71V ~ 3.6V
REACH Status
REACH Unaffected
Sensitivity (mV/°/s)
-
Sensitivity (LSB/(°/s))
16.4 ~ 131
Maximum Operating Supply Voltage (V)
3.6
EU RoHS
Compliant
Moisture Sensitivity Level (MSL)
3 (168 Hours)
Linearity Error (%)
0.1
Operating Temperature
-40°C ~ 85°C (TA)
ECCN
EAR99
Grade
Automotive
Supplier Temperature Grade
Automotive
Range
+/- 250 dps, +/- 500 dps, +/- 1000 dps, +/- 2000 dps
Standard Package Name
LGA
Typical Angular Rate Noise Density (°/s/rtHz)
0.01
Pin Count
16
Typical Angular Velocity (°/s)
±2000
Mounting
Surface Mount
Qualification
AEC-Q100
Moisture Sensitive
Yes
Linearity
No
Typical Operating Supply Voltage (V)
1.8
HTSUS
8542.39.0001
Package
Tape & Reel (TR)
USHTS
8542390060
Resolution
16 bit
PCB changed
16
HTS
8542.39.00.60
Output Type
I2C, SPI
ECCN (US)
EAR99
Shock (g)
10000
Supply Voltage - Min
1.71 V
Minimum Operating Temperature (°C)
-40
Maximum Operating Temperature (°C)
85
Operating Supply Current
2.6 mA
Bandwidth
27kHz
Package Height
0.75
Mfr
TDK InvenSense
Height
0.75 mm
Features
Adjustable Bandwidth, Selectable Scale, Sleep Mode, Temperature Sensor
Axis Type
Triple
Maximum Operating Temperature
+ 85 C
Supply Voltage - Max
3.6 V
Width
3 mm
Interface Type
I2C, SPI
Axis
X (Pitch), Y (Roll), Z (Yaw)
RoHS Status
ROHS3 Compliant
Range °/s
±250, 500, 1000, 2000
Maximum Operating Supply Current (mA)
2.6(Typ)
Package Length
3
Minimum Operating Temperature
- 40 C
Series
-
Type
Digital
Sensitivity
16.4 LSB/dps, 32.8 LSB/dps, 65.5 LSB/dps, 131 LSB/dps
Length
3 mm
Part Status
Active
Sensing Axis
X, Y, Z
Package Width
3
Minimum Operating Supply Voltage (V)
1.71
