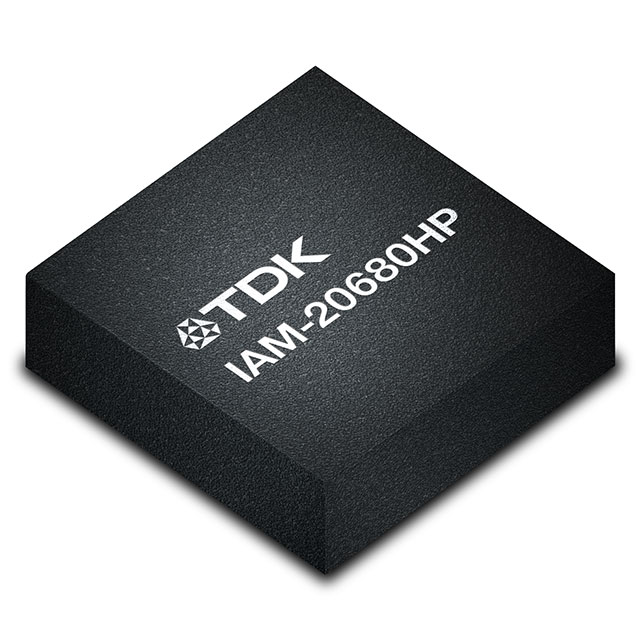

TDK InvenSense_IAM-20680HP
TDK InvenSense_IAM-20680HP
TDK InvenSense

IAM-20680HP

Sensors
TDK InvenSense
IAM-20680HP
54-IAM-20680HP
TDK InvenSense-IAM-20680HP-datasheet-839305.pdf
TDK InvenSense-IAM-20680HP-datasheets-839305.pdf
6 AXIS GYROSCOPE
In Stock : 11612

Not available

QUICK RFQ
ADD TO RFQ LIST
ampheo flow
  • Quantity
  • Unit Price
  • Ext. Price
    • 1+
    • $14.61680
    • $14.62
    • 10+
    • $12.58660
    • $125.87
    • 100+
    • $11.77458
    • $1177.46
    • 1000+
    • $10.35351
    • $10353.51
    ADD TO CART
    QUICK ORDER
    $14.61680    $14.62
    Description Tech Specifications Documents Shopping Guide

    IAM-20680HP Description

    6 AXIS GYROSCOPE

    Tech Specifications

    PPAP
    Yes
    Product Status
    Active
    RoHS
    RoHS Compliant
    Automotive
    Yes
    Tradename
    SmartAutomotive
    Supplier Package
    LGA
    Package / Case
    16-WFLGA Module
    Sensor Type
    Accelerometer, Gyroscope, 6 Axis
    REACH Status
    REACH Unaffected
    Maximum Operating Supply Voltage (V)
    3.6
    EU RoHS
    Compliant
    Moisture Sensitivity Level (MSL)
    3 (168 Hours)
    Operating Temperature
    -40°C ~ 85°C
    ECCN
    EAR99
    Supplier Temperature Grade
    Automotive
    Mounting Type
    Surface Mount
    Standard Package Name
    LGA
    Pin Count
    16
    Mounting
    Surface Mount
    Moisture Sensitive
    Yes
    Typical Operating Supply Voltage (V)
    1.8|2.5|3.3
    HTSUS
    9031.80.8085
    Package
    Tape & Reel (TR)
    USHTS
    9031808085
    Resolution
    16 bit
    Category
    MotionTracking Device
    PCB changed
    16
    HTS
    8542.39.00.60
    Output Type
    I2C, SPI
    ECCN (US)
    EAR99
    Supply Voltage - Min
    1.71 V
    Supplier Device Package
    16-LGA (3x3)
    Minimum Operating Temperature (°C)
    -40
    Maximum Operating Temperature (°C)
    105
    Operating Supply Current
    3 mA
    Package Height
    0.75
    Mfr
    TDK InvenSense
    Maximum Operating Temperature
    + 105 C
    Supply Voltage - Max
    3.6 V
    Interface Type
    I2C, SPI
    RoHS Status
    ROHS3 Compliant
    Mounting Style
    SMD/SMT
    Package Length
    3
    Minimum Operating Temperature
    - 40 C
    Series
    -
    Sensitivity
    16384 LSB/g
    Part Status
    Active
    Sensing Axis
    X, Y, Z
    Package Width
    3
    Acceleration
    2 g, 4 g, 8 g, 16 g
    Base Product Number
    IAM-20680

    IAM-20680HP Documents

    Download datasheets IAM-20680HP
