TDK InvenSense

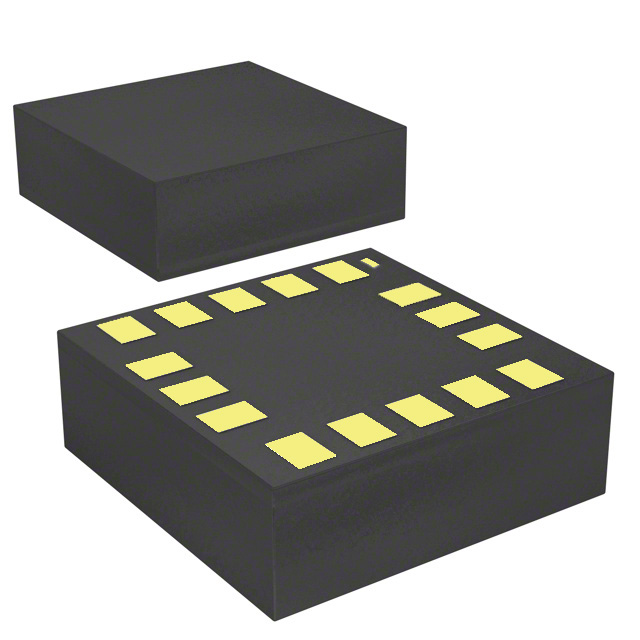

ICM-20602
Sensors
ICM-20602
54-ICM-20602
IMU ACCEL/GYRO/TEMP I2C/SPI LGA
In Stock : 14839
Not available
QUICK RFQ
ADD TO RFQ LIST
- 1+
- $2.67444
- $2.67
- 10+
- $2.31509
- $23.15
- 30+
- $2.09153
- $62.75
- 100+
- $1.66428
- $166.43
- 500+
- $1.55995
- $779.98
- 1000+
- $1.51524
- $1515.24
ADD TO CART
QUICK ORDER
$2.67444
$2.67
ICM-20602 Description
IMU ACCEL/GYRO/TEMP I2C/SPI LGA
Tech Specifications
Unit Weight
0.025767 oz
PCB changed
16
HTS
8542.39.00.60
Output Type
I2C, SPI
ECCN (US)
EAR99
PPAP
Unknown
Product Status
Not For New Designs
RoHS
RoHS Compliant
Automotive
Unknown
Supply Voltage - Min
1.71 V
Supplier Device Package
16-LGA (3x3)
Tradename
SmartMotion
Supplier Package
LGA
Operating Supply Current
2.79 mA
Package / Case
16-WFLGA Module
Sensor Type
Accelerometer, Gyroscope, Temperature, 6 Axis
REACH Status
REACH Unaffected
Mfr
TDK InvenSense
Maximum Operating Temperature
+ 85 C
EU RoHS
Compliant
Supply Voltage - Max
3.45 V
Interface Type
I2C, SPI
RoHS Status
ROHS3 Compliant
Moisture Sensitivity Level (MSL)
3 (168 Hours)
Mounting Style
SMD/SMT
Operating Temperature
-40°C ~ 85°C (TA)
ECCN
7A994
Package Length
3
Mounting Type
Surface Mount
Standard Package Name
LGA
Minimum Operating Temperature
- 40 C
Pin Count
16
Mounting
Surface Mount
Series
-
Sensitivity
16384 LSB/g
Moisture Sensitive
Yes
Operating Supply Voltage
1.8 V
Part Status
NRND
HTSUS
8542.39.0001
Package
Tape & Reel (TR)
Sensing Axis
X, Y, Z
Package Width
3
Acceleration
2 g, 4 g, 8 g, 16 g
USHTS
9031808085
Resolution
16 bit
ICM-20602 Documents
Download datasheets ICM-20602
