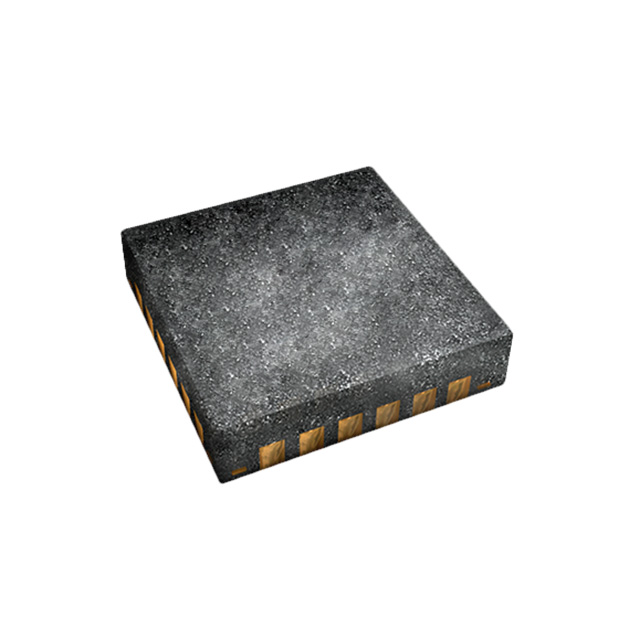

TDK InvenSense_ICM-20648
TDK InvenSense_ICM-20648
TDK InvenSense

ICM-20648

Sensors
TDK InvenSense
ICM-20648
54-ICM-20648
TDK InvenSense-ICM-20648-datasheet-839629.pdf
TDK InvenSense-ICM-20648-datasheets-839629.pdf
IMU ACCEL/GYRO/TEMP I2C/SPI QFN
In Stock : 6227

Not available

QUICK RFQ
ADD TO RFQ LIST
ampheo flow
  • Quantity
  • Unit Price
  • Ext. Price
    • 1+
    • $4.29760
    • $4.3
    • 10+
    • $3.60064
    • $36.01
    • 100+
    • $3.36835
    • $336.83
    • 1000+
    • $3.13605
    • $3136.05
    ADD TO CART
    QUICK ORDER
    $4.29760    $4.30
    Description Tech Specifications Documents Shopping Guide

    ICM-20648 Description

    IMU ACCEL/GYRO/TEMP I2C/SPI QFN

    Tech Specifications

    Unit Weight
    0.082453 oz
    Output Type
    I2C, SPI
    Product Status
    Obsolete
    RoHS
    RoHS Compliant
    Supply Voltage - Min
    1.71 V
    Supplier Device Package
    24-QFN (3x3)
    Tradename
    SmartMotion
    Operating Supply Current
    3.2 mA
    Package / Case
    24-VFQFN Module Exposed Pad
    Sensor Type
    Accelerometer, Gyroscope, Temperature, 6 Axis
    REACH Status
    REACH Unaffected
    Mfr
    TDK InvenSense
    Maximum Operating Temperature
    + 85 C
    Supply Voltage - Max
    3.6 V
    Interface Type
    I2C, SPI
    RoHS Status
    ROHS3 Compliant
    Moisture Sensitivity Level (MSL)
    3 (168 Hours)
    Mounting Style
    SMD/SMT
    Operating Temperature
    -40°C ~ 85°C (TA)
    ECCN
    7A994
    Mounting Type
    Surface Mount
    Minimum Operating Temperature
    - 40 C
    Series
    -
    Sensitivity
    16384 LSB/g
    Moisture Sensitive
    Yes
    Operating Supply Voltage
    -
    HTSUS
    8542.39.0001
    Package
    Tape & Reel (TR)
    Sensing Axis
    X, Y, Z
    Acceleration
    2 g, 4 g, 8 g, 16 g
    USHTS
    8542390060
    Resolution
    16 bit

    ICM-20648 Documents

    Download datasheets ICM-20648
