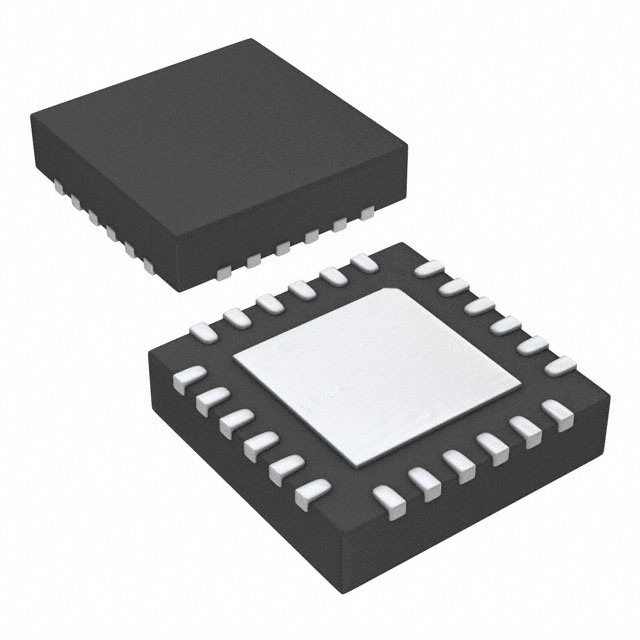

TDK InvenSense_ICM-20649
TDK InvenSense_ICM-20649
TDK InvenSense

ICM-20649

Sensors
TDK InvenSense
ICM-20649
54-ICM-20649
TDK InvenSense-ICM-20649-datasheet-840200.pdf
TDK InvenSense-ICM-20649-datasheets-840200.pdf
WIDE-FULL SCALE RANGE 6-AXIS MEM
In Stock : 4852

Not available

QUICK RFQ
ADD TO RFQ LIST
ampheo flow
  • Quantity
  • Unit Price
  • Ext. Price
    • 1+
    • $7.75700
    • $7.76
    • 10+
    • $7.17520
    • $71.75
    • 100+
    • $6.20540
    • $620.54
    • 1000+
    • $5.15827
    • $5158.27
    ADD TO CART
    QUICK ORDER
    $7.75700    $7.76
    Description Tech Specifications Documents Shopping Guide

    ICM-20649 Description

    WIDE-FULL SCALE RANGE 6-AXIS MEM

    Tech Specifications

    Unit Weight
    0.016377 oz
    PPAP
    Unknown
    Product Status
    Obsolete
    RoHS
    RoHS Compliant
    Automotive
    Unknown
    Tradename
    SmartMotion
    Supplier Package
    QFN EP
    Package / Case
    24-VFQFN Module Exposed Pad
    Sensor Type
    Accelerometer, Gyroscope, Temperature, 6 Axis
    REACH Status
    REACH Unaffected
    Maximum Operating Supply Voltage (V)
    3.6
    EU RoHS
    Compliant
    Moisture Sensitivity Level (MSL)
    3 (168 Hours)
    Operating Temperature
    -40°C ~ 85°C (TA)
    ECCN
    7A994
    Mounting Type
    Surface Mount
    Standard Package Name
    QFN
    Pin Count
    24
    Mounting
    Surface Mount
    Moisture Sensitive
    Yes
    Lead Shape
    No Lead
    Typical Operating Supply Voltage (V)
    1.8
    HTSUS
    8542.39.0001
    Package
    Tape & Reel (TR)
    USHTS
    8542390060
    Resolution
    16 bit
    Category
    MotionTracking Device
    PCB changed
    24
    HTS
    8473.30.11.80
    Output Type
    I2C, SPI
    ECCN (US)
    EAR99
    Supply Voltage - Min
    1.71 V
    Supplier Device Package
    24-QFN (3x3)
    Minimum Operating Temperature (°C)
    -40
    Maximum Operating Temperature (°C)
    85
    Operating Supply Current
    3.2 mA
    Minimum Storage Temperature (°C)
    -40
    Package Height
    0.88
    Mfr
    TDK InvenSense
    Maximum Operating Temperature
    + 85 C
    Supply Voltage - Max
    3.6 V
    Interface Type
    I2C, SPI
    RoHS Status
    ROHS3 Compliant
    Mounting Style
    SMD/SMT
    Package Length
    3
    Minimum Operating Temperature
    - 40 C
    Series
    -
    Sensitivity
    16384 LSB/g
    Operating Supply Voltage
    1.8 V
    Part Status
    Obsolete
    Sensing Axis
    X, Y, Z
    Package Width
    3
    Acceleration
    4 g, 8 g, 16 g, 30 g
