TDK InvenSense

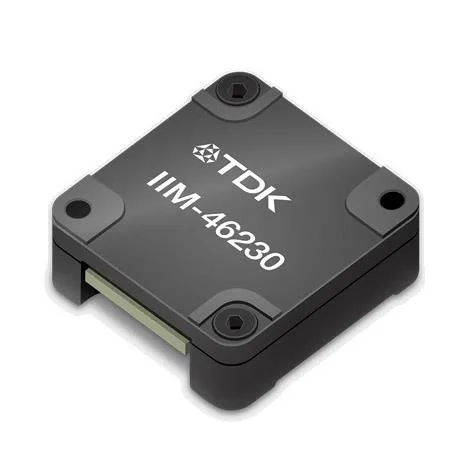

IIM-46230
Sensors
IIM-46230
54-IIM-46230
INDUSTRIAL IMU
In Stock : 68
Not available
QUICK RFQ
ADD TO RFQ LIST
- 1+
- $423.57000
- $423.57
- 10+
- $409.70600
- $4097.06
ADD TO CART
QUICK ORDER
$423.57000
$423.57
IIM-46230 Description
INDUSTRIAL IMU
Tech Specifications
PCB changed
20
HTS
9031.80.80.85
Output Type
SPI, UART
ECCN (US)
EAR99
PPAP
Unknown
Product Status
Active
RoHS
RoHS Compliant
Automotive
Unknown
Supply Voltage - Min
3 V
Supplier Device Package
-
Tradename
SmartMotion
Package / Case
Module
Sensor Type
Accelerometer, Gyroscope, Temperature, 6 Axis
REACH Status
REACH Unaffected
Package Height
8.5
Mfr
TDK InvenSense
Maximum Operating Temperature
+ 85 C
EU RoHS
Compliant
Supply Voltage - Max
3.6 V
Interface Type
SPI, UART
RoHS Status
ROHS3 Compliant
Moisture Sensitivity Level (MSL)
1 (Unlimited)
Mounting Style
SMD/SMT
Operating Temperature
-40°C ~ 85°C
ECCN
EAR99
Package Length
23
Mounting Type
Chassis Mount
Minimum Operating Temperature
- 40 C
Pin Count
20
Mounting
Screw
Series
-
Part Status
Active
HTSUS
8542.39.0001
Package
Strip
Sensing Axis
X, Y, Z
Package Width
23
Acceleration
16 g
USHTS
9031808085
IIM-46230 Documents
Download datasheets IIM-46230
