XP Power

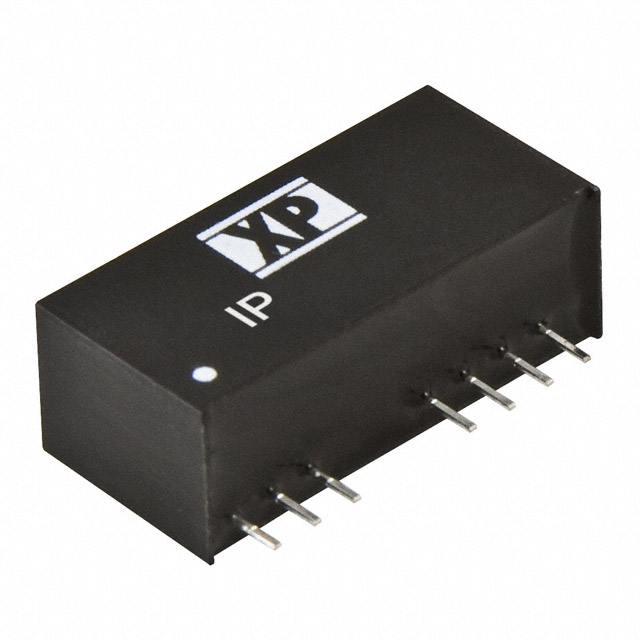

IP2412SA
External/Internal DC DC Converters
IP2412SA
50-IP2412SA
IP2412SA
In Stock : 129
Not available
QUICK RFQ
ADD TO RFQ LIST
- 1+
- $16.70200
- $16.7
- 10+
- $16.15500
- $161.55
- 100+
- $15.42520
- $1542.52
- 1000+
- $14.33000
- $14330
ADD TO CART
QUICK ORDER
$16.70200
$16.70
IP2412SA Description
IP (3W) Series, ROHS3 Compliant
Tech Specifications
Unit Weight
0.229281 oz
Voltage - Input (Max)
36V
Product
Isolated
Output Current-Channel 1
250 mA
Product Status
Active
Input Voltage - Max
36 V
RoHS
RoHS Compliant
Current - Output (Max)
250mA
Output Current-Channel 2
-
Industry
Industrial
Voltage - Input (Min)
9V
Input Voltage - Min
9 V
Package / Case
8-SIP Module, 7 Leads
Efficiency
82%
Mfr
XP Power
Height
11.1 mm (0.437 in)
Features
Remote On/Off, SCP
Maximum Operating Temperature
+ 85 C
Width
9.2 mm (0.362 in)
RoHS Status
ROHS3 Compliant
Moisture Sensitivity Level (MSL)
1 (Unlimited)
Mounting Style
Through Hole
Isolation Voltage
1.6 kV
Output Voltage-Channel 1
12 V
Operating Temperature
-40°C ~ 85°C
Output Voltage-Channel 2
-
Applications
ITE (Commercial)
Output Power
3 W
Voltage - Output 2
-
Voltage - Output 3
-
Voltage - Isolation
1.6 kV
ECCN
EAR99
Input Voltage, Nominal
24 V
Input Voltage
9 V to 36 V
Voltage - Output 1
12V
Mounting Type
Through Hole
Size / Dimension
0.86" L x 0.36" W x 0.44" H (21.9mm x 9.2mm x 11.1mm)
Minimum Operating Temperature
- 40 C
Number of Outputs
1
Series
IP (3W)
Power (Watts)
3 W
Control Features
Enable, Active Low
Type
Isolated Module
Length
21.85 mm (0.86 in)
HTSUS
8504.40.9580
Package
Tube
USHTS
8504409580
Base Product Number
IP2412
IP2412SA Documents
Download datasheets IP2412SA
