LITEON

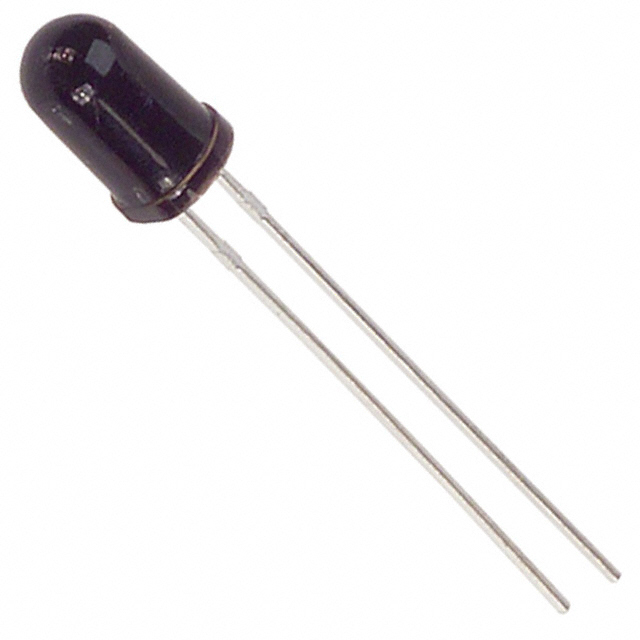

LTR-3208E
Sensors
LTR-3208E
54-LTR-3208E
SENSOR PHOTO 940NM TOP VIEW RAD
In Stock : 12345
Not available
QUICK RFQ
ADD TO RFQ LIST
- 1+
- $0.17420
- $0.17
- 10+
- $0.13635
- $1.36
- 100+
- $0.11362
- $11.36
- 1000+
- $0.10605
- $106.05
ADD TO CART
QUICK ORDER
$0.17420
$0.17
LTR-3208E Description
SENSOR PHOTO 940NM TOP VIEW RAD
Tech Specifications
Number of Channels per Chip
1
Fabrication Technology
NPN Transistor
PPAP
No
Product Status
Active
Voltage - Collector Emitter Breakdown (Max)
30 V
Automotive
No
Supplier Package
T-1 3/4
Package / Case
Radial
REACH Status
REACH Unaffected
Maximum Collector-Emitter Saturation Voltage (V)
0.4
Lens Shape Type
Domed
EU RoHS
Compliant
Moisture Sensitivity Level (MSL)
1 (Unlimited)
Operating Temperature
-40°C ~ 85°C (TA)
Current - Collector (Ic) (Max)
3.12 mA
Maximum Collector Current (mA)
4.5
Maximum Fall Time (ns)
15000(Typ)
ECCN
EAR99
Orientation
Top View
Mounting Type
Through Hole
Wavelength
940nm
Maximum Emitter-Collector Voltage (V)
5
Pin Count
2
Mounting
Through Hole
Viewing Orientation
Top View
Lead Shape
Through Hole
HTSUS
8541.49.7080
Package
Bulk
Maximum Light Current (uA)
3600
PCB changed
2
HTS
8541.41.00.00
Viewing Angle
20°
Maximum Collector-Emitter Voltage (V)
30
ECCN (US)
EAR99
Maximum Power Dissipation (mW)
100
Current - Dark (Id) (Max)
100 nA
Minimum Operating Temperature (°C)
-40
Maximum Operating Temperature (°C)
85
Phototransistor Type
Phototransistor
Package Height
8.6
Mfr
Lite-On Inc.
Polarity
NPN
Maximum Dark Current (nA)
100
Diameter
5.8
RoHS Status
ROHS3 Compliant
Maximum Rise Time (ns)
10000(Typ)
Cut-Off Filter
Visible Cut-off
Series
-
Type
IR Chip
Power - Max
100 mW
Part Status
Active
Base Product Number
LTR-3208
LTR-3208E Documents
Download datasheets LTR-3208E
