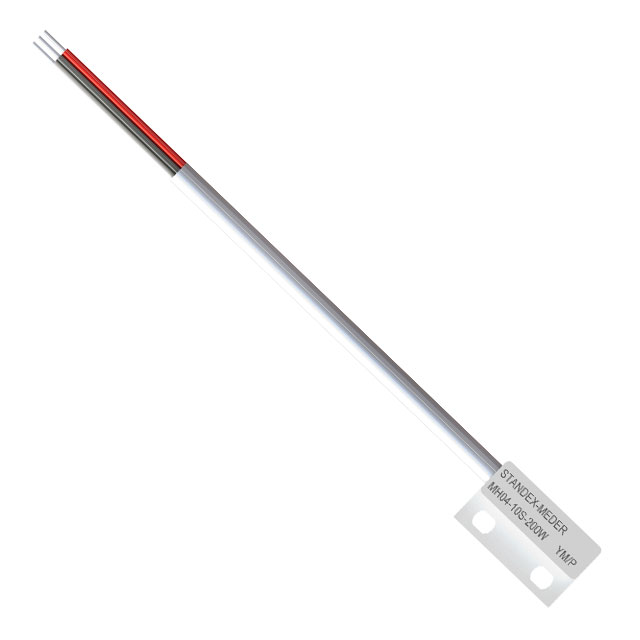

Standex Electronics, Inc._MH04-10S-300W
Standex Electronics, Inc._MH04-10S-300W
Standex Electronics, Inc.

MH04-10S-300W

Sensors
Standex Electronics, Inc.
MH04-10S-300W
54-MH04-10S-300W
Standex Electronics, Inc.-MH04-10S-300W-datasheet-853802.pdf
Standex Electronics, Inc.-MH04-10S-300W-datasheets-853802.pdf
SENSOR HALL OPEN COLLECTOR CABLE
In Stock : 434

Not available

QUICK RFQ
ADD TO RFQ LIST
ampheo flow
  • Quantity
  • Unit Price
  • Ext. Price
    • 1+
    • $6.92000
    • $6.92
    • 10+
    • $5.53500
    • $55.35
    • 100+
    • $4.28947
    • $428.95
    • 1000+
    • $3.87436
    • $3874.36
    ADD TO CART
    QUICK ORDER
    $6.92000    $6.92
    Description Tech Specifications Documents Shopping Guide

    Tech Specifications

    PCB changed
    3
    HTS
    8536.50.90.20
    Output Type
    Open Collector
    Maximum Magnetic Sensor Operating Point (Gs)
    37(Typ)
    ECCN (US)
    EAR99
    Module/IC Classification
    Module
    PPAP
    No
    Magnetic Type
    Omnipolar
    Product Status
    Active
    Automotive
    No
    Minimum Operating Temperature (°C)
    -40
    Maximum Operating Temperature (°C)
    85
    Package / Case
    Flange Mount
    Voltage - Supply
    2.5V ~ 3.5V
    REACH Status
    REACH Unaffected
    Package Height
    5.9
    Mfr
    Standex-Meder Electronics
    Maximum Operating Supply Voltage (V)
    3.5
    Typical Magnetic Sensor Hysteresis (Gs)
    6
    EU RoHS
    Compliant
    RoHS Status
    ROHS3 Compliant
    Moisture Sensitivity Level (MSL)
    1 (Unlimited)
    Operating Temperature
    -40°C ~ 85°C (TA)
    Must Release
    31G
    Must Operate
    37G
    Termination Style
    Cable
    Maximum Supply Current (uA)
    2000
    ECCN
    EAR99
    Package Length
    23
    Pin Count
    3
    Mounting
    Screw
    Series
    MH04
    Type
    Hall Effect Switch
    Minimum Magnetic Sensor Release Point (Gs)
    31(Typ)
    Part Status
    Active
    Typical Operating Supply Voltage (V)
    2.75
    HTSUS
    8543.70.9860
    Package
    Bulk
    Package Width
    13.9
    Actuator Material
    Magnet
    Minimum Operating Supply Voltage (V)
    2.5

    MH04-10S-300W Documents

    Download datasheets MH04-10S-300W
