ZF Electronics_MP101301
ZF Electronics_MP101301
ZF Electronics

MP101301

Sensors
ZF Electronics
MP101301
54-MP101301
ZF Electronics-MP101301-datasheet-853268.pdf
ZF Electronics-MP101301-datasheets-853268.pdf

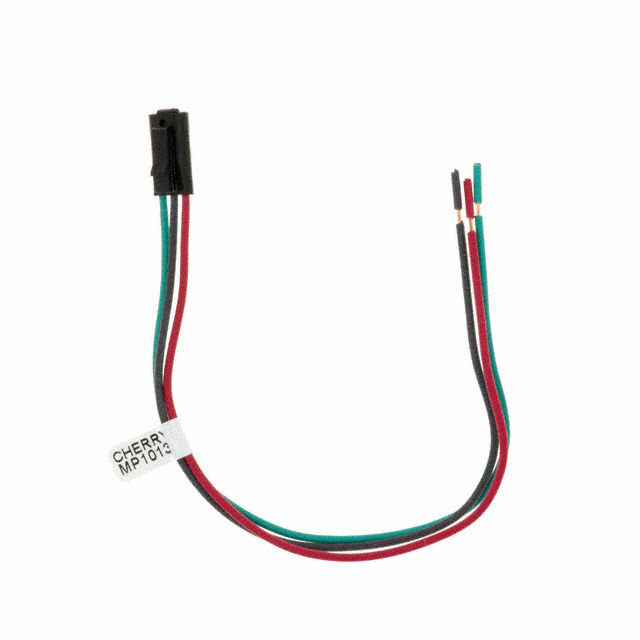

SENSOR HALL DIGITAL WIRE LEADS
In Stock : 132

Not available

QUICK RFQ
ADD TO RFQ LIST
ampheo flow
  • Quantity
  • Unit Price
  • Ext. Price
    • 1+
    • $5.91460
    • $5.91
    ADD TO CART
    QUICK ORDER
    $5.91460    $5.91
    Description Tech Specifications Documents Shopping Guide

    MP101301 Description

    ZF Electronics MP1 Serie

    Tech Specifications

    Unit Weight
    0.203874 oz
    Sensing Distance
    -
    Module/IC Classification
    Module
    PPAP
    No
    Product Status
    Active
    RoHS
    RoHS Compliant
    Automotive
    No
    Package / Case
    Module
    Voltage - Supply
    4.75V ~ 24V
    Maximum Operating Supply Voltage (V)
    24
    EU RoHS
    Compliant
    Moisture Sensitivity Level (MSL)
    1 (Unlimited)
    Operating Temperature
    -40°C ~ 85°C (TA)
    Must Release
    -
    Termination Style
    Wire Leads
    ECCN
    EAR99
    Pin Count
    3
    Mounting
    Snap Fit
    Typical Operating Supply Voltage (V)
    12|15|18|5|9
    HTSUS
    8543.70.9860
    Package
    Box
    USHTS
    8536507000
    PCB changed
    3
    HTS
    9031.80.80.85
    Output Type
    Digital
    Maximum Magnetic Sensor Operating Point (Gs)
    245
    ECCN (US)
    EAR99
    Magnetic Type
    Unipolar
    Output Configuration
    Digital
    Sensing Method
    Magnetic
    Minimum Operating Temperature (°C)
    -40
    Maximum Operating Temperature (°C)
    85
    Operating Supply Current
    9 mA
    Package Height
    13.97
    Mfr
    ZF Electronics
    Maximum Operating Temperature
    + 85 C
    RoHS Status
    ROHS3 Compliant
    Mounting Style
    Wire
    Must Operate
    -
    Maximum Supply Current (uA)
    7.5
    Package Length
    7.75
    Minimum Operating Temperature
    - 40 C
    Series
    MP1
    Type
    Hall Effect Sensor
    Operating Supply Voltage
    24 V
    Minimum Magnetic Sensor Release Point (Gs)
    60
    Part Status
    Active
    Maximum Output Current (mA)
    25
    Actuator Material
    Magnet, South Pole
    Minimum Operating Supply Voltage (V)
    5

    MP101301 Documents

    Download datasheets MP101301
