ZF Electronics
MP101401
Sensors
MP101401
54-MP101401

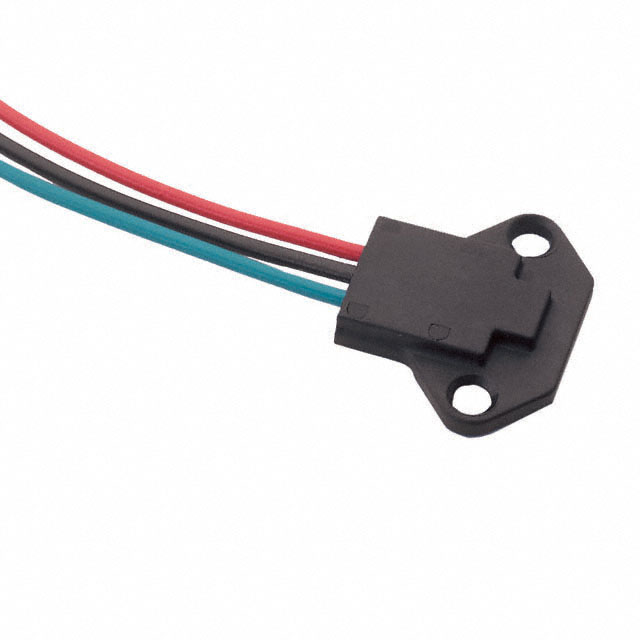

SENSOR HALL DIGITAL WIRE LEADS
In Stock : Please Submit RFQ TO US
Not available
QUICK RFQ
ADD TO RFQ LIST
MP101401 Description
ZF Electronics MP1 Serie
Tech Specifications
Unit Weight
0.290411 oz
PCB changed
3
HTS
8536.50.90.65
Output Type
Digital
Sensing Distance
-
ECCN (US)
EAR99
PPAP
No
Output Configuration
Digital
Sensing Method
Magnetic
Product Status
Active
RoHS
RoHS Compliant
Automotive
No
Package / Case
Module
Voltage - Supply
4.5V ~ 18V
REACH Status
REACH Unaffected
Package Height
3.3
Mfr
ZF Electronics
Maximum Operating Temperature
+ 85 C
EU RoHS
Compliant
RoHS Status
ROHS3 Compliant
Moisture Sensitivity Level (MSL)
1 (Unlimited)
Mounting Style
Wire
Operating Temperature
-40°C ~ 85°C (TA)
Must Release
-
Must Operate
-
Termination Style
Wire Leads
ECCN
EAR99
Package Length
21.72
Minimum Operating Temperature
- 40 C
Pin Count
3
Mounting
Screw
Series
MP1
Type
Hall Effect Sensor
Operating Supply Voltage
24 V
Part Status
Active
HTSUS
8543.70.9860
Package
Box
Package Width
17.27
USHTS
8543704500
Actuator Material
Magnet, South Pole
MP101401 Documents
Download datasheets MP101401
