ZF Electronics_MP201701
ZF Electronics_MP201701
ZF Electronics

MP201701

Sensors
ZF Electronics
MP201701
54-MP201701
ZF Electronics-MP201701-datasheet-800414.pdf
ZF Electronics-MP201701-datasheets-800414.pdf

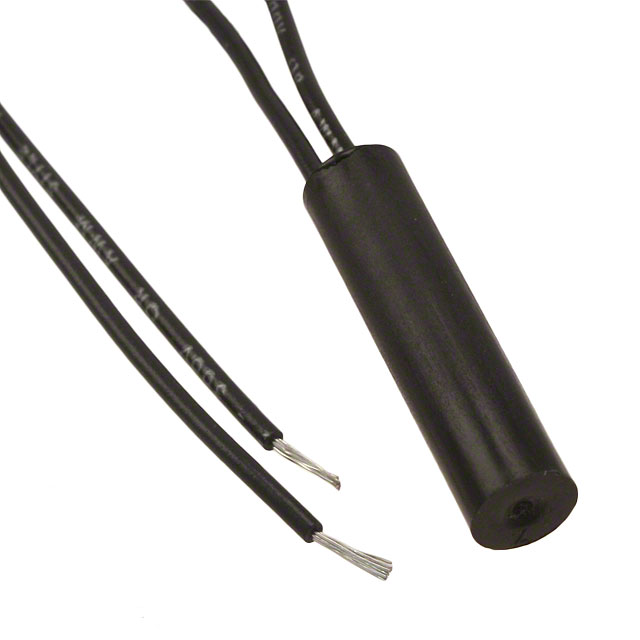

SENSOR REED SW SPST-NO W LEADS
In Stock : 668

Not available

QUICK RFQ
ADD TO RFQ LIST
ampheo flow
  • Quantity
  • Unit Price
  • Ext. Price
    • 1+
    • $3.18300
    • $3.18
    • 10+
    • $2.95152
    • $29.52
    • 100+
    • $2.73932
    • $273.93
    • 1000+
    • $2.48854
    • $2488.54
    ADD TO CART
    QUICK ORDER
    $3.18300    $3.18
    Description Tech Specifications Documents Shopping Guide

    MP201701 Description

    ZF Electronics MP2 Serie

    Tech Specifications

    Unit Weight
    0.210604 oz
    PCB changed
    2
    HTS
    8542.39.00.60
    Output Type
    SPST-NO
    Sensing Distance
    -
    Sensing Distance Range (mm)
    7 to 15
    ECCN (US)
    EAR99
    Module/IC Classification
    IC
    PPAP
    No
    Output Configuration
    SPST-NO
    Sensing Method
    Magnetic
    Product Status
    Active
    RoHS
    RoHS Compliant
    Automotive
    No
    Minimum Operating Temperature (°C)
    -40
    Maximum Operating Temperature (°C)
    105
    Operating Supply Current
    500 mA
    Package / Case
    Cylinder
    Voltage - Supply
    -
    REACH Status
    REACH Unaffected
    Sensing Distance (mm)
    12.7
    Mfr
    ZF Electronics
    Maximum Operating Temperature
    + 105 C
    EU RoHS
    Compliant
    Diameter
    6.16
    RoHS Status
    ROHS3 Compliant
    Moisture Sensitivity Level (MSL)
    1 (Unlimited)
    Mounting Style
    Wire
    Switching Mode
    NO
    Operating Temperature
    -40°C ~ 105°C (TA)
    Must Release
    12.70mm
    Must Operate
    3.81mm
    Termination Style
    Wire Leads
    Terminal Type
    Leadwire
    ECCN
    EAR99
    Package Length
    25.4
    Minimum Operating Temperature
    - 40 C
    Pin Count
    2
    Mounting
    Panel
    Series
    MP2
    Type
    Reed Switch
    Body Style
    Barrel
    Operating Supply Voltage
    175 V
    Part Status
    Active
    HTSUS
    8536.50.9065
    Package
    Bulk
    USHTS
    8543704500
    Actuator Material
    Magnet
