ZF Electronics_MP201801
ZF Electronics_MP201801
ZF Electronics

MP201801

Sensors
ZF Electronics
MP201801
54-MP201801
ZF Electronics-MP201801-datasheet-802037.pdf
ZF Electronics-MP201801-datasheets-802037.pdf

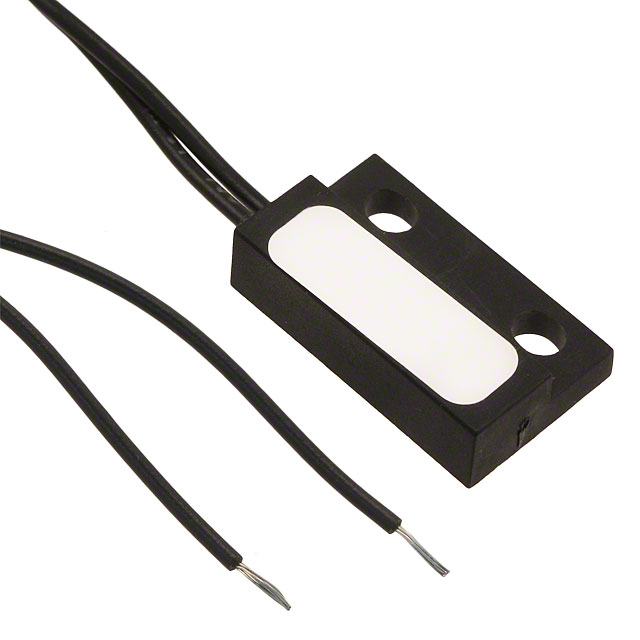

SENSOR REED SW SPST-NO W LEADS
In Stock : 4797

Not available

QUICK RFQ
ADD TO RFQ LIST
ampheo flow
  • Quantity
  • Unit Price
  • Ext. Price
    • 1+
    • $3.49964
    • $3.5
    • 10+
    • $3.24512
    • $32.45
    • 100+
    • $3.01182
    • $301.18
    • 1000+
    • $2.73609
    • $2736.09
    ADD TO CART
    QUICK ORDER
    $3.49964    $3.50
    Description Tech Specifications Documents Shopping Guide

    MP201801 Description

    ZF Electronics MP2 Serie

    Tech Specifications

    Unit Weight
    0.220626 oz
    Sensing Distance
    -
    Module/IC Classification
    Module
    PPAP
    No
    Product Status
    Active
    RoHS
    RoHS Compliant
    Automotive
    No
    Package / Case
    Rectangular, Wire Leads
    Voltage - Supply
    -
    REACH Status
    REACH Unaffected
    Maximum Operating Supply Voltage (V)
    175
    EU RoHS
    Compliant
    Moisture Sensitivity Level (MSL)
    1 (Unlimited)
    Operating Temperature
    -40°C ~ 105°C (TA)
    Must Release
    17.80mm
    Termination Style
    Wire Leads
    AC Supply Voltage (V)
    175(Max)
    Terminal Type
    Leadwire
    ECCN
    EAR99
    Pin Count
    2
    Mounting
    Screw
    HTSUS
    8536.50.9065
    Package
    Bulk
    USHTS
    8543704500
    PCB changed
    2
    HTS
    COMPONENTS
    Output Type
    SPST-NO
    Sensing Distance Range (mm)
    15 to 50
    ECCN (US)
    EAR99
    Output Configuration
    SPST-NO
    Sensing Method
    Magnetic
    Minimum Operating Temperature (°C)
    -40
    Maximum Operating Temperature (°C)
    105
    Operating Supply Current
    500 mA
    Package Height
    5.99
    Sensing Distance (mm)
    17.8
    Mfr
    ZF Electronics
    Height
    5.99 mm
    Maximum Operating Temperature
    + 105 C
    Width
    13.97 mm
    RoHS Status
    ROHS3 Compliant
    Mounting Style
    Wire
    Switching Mode
    NO
    DC Supply Voltage (V)
    175(Max)
    Must Operate
    6.35mm
    Package Length
    23.01
    Minimum Operating Temperature
    - 40 C
    Series
    MP2
    Type
    Reed Switch
    Body Material
    Glass-Reinforced Plastic
    Length
    23.01 mm
    Body Style
    Rectangular
    Operating Supply Voltage
    175 V
    Part Status
    Active
    Package Width
    13.97
    Actuator Material
    Magnet

    MP201801 Documents

    Download datasheets MP201801
