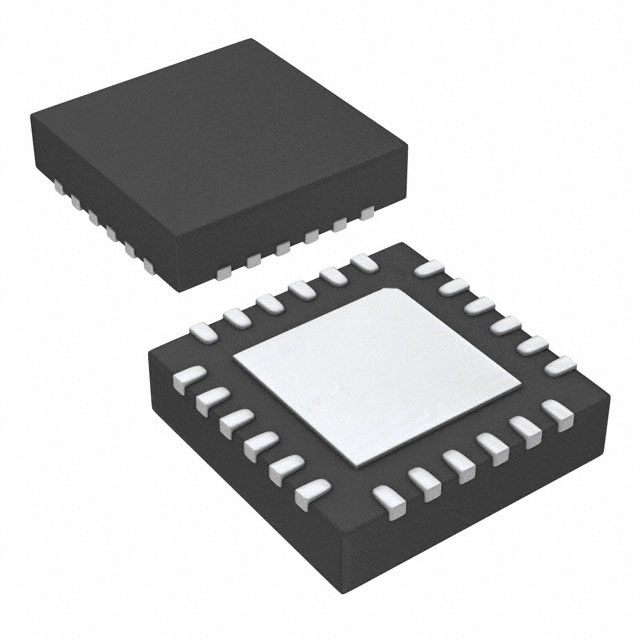

TDK InvenSense_MPU-6500
TDK InvenSense_MPU-6500
TDK InvenSense

MPU-6500

Sensors
TDK InvenSense
MPU-6500
54-MPU-6500
TDK InvenSense-MPU-6500-datasheet-839245.pdf
TDK InvenSense-MPU-6500-datasheets-839245.pdf
IMU ACCEL/GYRO 3-AXIS I2C 24QFN
In Stock : 2475

Not available

QUICK RFQ
ADD TO RFQ LIST
ampheo flow
  • Quantity
  • Unit Price
  • Ext. Price
    • 1+
    • $2.58998
    • $2.59
    • 10+
    • $2.32999
    • $23.3
    • 30+
    • $2.14618
    • $64.39
    • 100+
    • $1.87294
    • $187.29
    • 500+
    • $1.79510
    • $897.55
    • 1000+
    • $1.76364
    • $1763.64
    ADD TO CART
    QUICK ORDER
    $2.58998    $2.59
    Description Tech Specifications Documents Shopping Guide

    MPU-6500 Description

    TDK InvenSense MotionTracking™ Serie

    Tech Specifications

    Unit Weight
    0.078527 oz
    PPAP
    Unknown
    Product Status
    Not For New Designs
    RoHS
    RoHS Compliant
    Automotive
    Unknown
    Tradename
    SmartMotion
    Supplier Package
    QFN EP
    Package / Case
    24-VFQFN Module Exposed Pad
    Sensor Type
    Accelerometer, Gyroscope, 6 Axis
    REACH Status
    REACH Unaffected
    Maximum Operating Supply Voltage (V)
    3.45
    EU RoHS
    Compliant
    Moisture Sensitivity Level (MSL)
    3 (168 Hours)
    Operating Temperature
    -40°C ~ 85°C (TA)
    ECCN
    EAR99
    Mounting Type
    Surface Mount
    Standard Package Name
    QFN
    Pin Count
    24
    Mounting
    Surface Mount
    Moisture Sensitive
    Yes
    Lead Shape
    No Lead
    Typical Operating Supply Voltage (V)
    1.8
    HTSUS
    8542.39.0001
    Package
    Tape & Reel (TR)
    USHTS
    8542390060
    Resolution
    16 bit
    Category
    MotionTracking Device
    PCB changed
    24
    HTS
    8473.30.11.80
    Output Type
    I2C, SPI
    ECCN (US)
    EAR99
    Supply Voltage - Min
    1.71 V
    Supplier Device Package
    24-QFN (3x3)
    Minimum Operating Temperature (°C)
    -40
    Maximum Operating Temperature (°C)
    85
    Operating Supply Current
    3.4 mA
    Minimum Storage Temperature (°C)
    -40
    Package Height
    0.88
    Mfr
    TDK InvenSense
    Maximum Operating Temperature
    + 85 C
    Supply Voltage - Max
    3.45 V
    Interface Type
    I2C, SPI
    RoHS Status
    ROHS3 Compliant
    Mounting Style
    SMD/SMT
    Package Length
    3
    Minimum Operating Temperature
    - 40 C
    Series
    MotionTracking™
    Sensitivity
    16348 LSB/g
    Operating Supply Voltage
    1.8 V
    Part Status
    NRND
    Sensing Axis
    X, Y, Z
    Package Width
    3
    Acceleration
    2 g, 4 g, 8 g, 16 g

    MPU-6500 Documents

    Download datasheets MPU-6500
