NXP Semiconductors

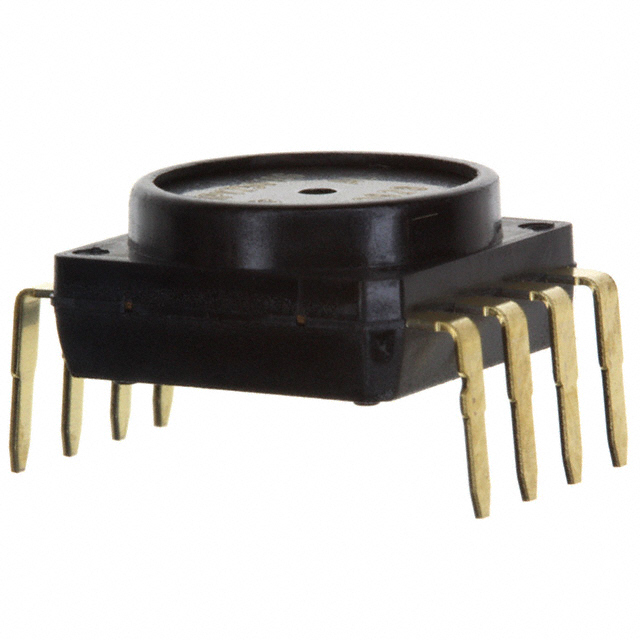

MPVZ5010G7U
Sensors
MPVZ5010G7U
54-MPVZ5010G7U
SENSOR 1.45PSIG 4.7V 8DIP
In Stock : 303
Not available
QUICK RFQ
ADD TO RFQ LIST
MPVZ5010G7U Description
NXP Semiconductors MPVZ5010G Serie
Tech Specifications
Operating Pressure
1.45PSI (10kPa)
Device Pressure Type
Gage
PPAP
No
Pressure Type
Vented Gauge
Product Status
Obsolete
Automotive
No
Supplier Package
PDIP
Typical Full Scale Output
4.7VDC
Package / Case
8-DIP Module
Voltage - Supply
4.75V ~ 5.25V
REACH Status
REACH Unaffected
Response Time (ms)
1
Maximum Operating Supply Voltage (V)
5.25
EU RoHS
Compliant
Moisture Sensitivity Level (MSL)
1 (Unlimited)
Accuracy (%)
±5
Operating Temperature
-40°C ~ 125°C
Termination Style
PC Pin
Port Size
-
Media
Air
ECCN
EAR99
Mounting Type
Through Hole
Standard Package Name
DIP
Operating Pressure Range
0kPa to 10kPa
Pin Count
8
Mounting
Through Hole
Lead Shape
Through Hole
SVHC
Yes
Output Voltage (V)
0.2 to 4.7
Typical Operating Supply Voltage (V)
5
HTSUS
8542.39.0001
Package
Tube
Maximum Overload Pressure
40kPa
PCB changed
8
HTS
COMPONENTS
Output Type
Analog Voltage
ECCN (US)
EAR99
Port Style
No Port
Supplier Device Package
8-DIP
Minimum Operating Temperature (°C)
-40
Maximum Operating Temperature (°C)
125
Accuracy
-
Output
0.2 V ~ 4.7 V
Package Height
5.59(Max)
Mfr
NXP USA Inc.
Features
Temperature Compensated
RoHS Status
ROHS3 Compliant
Applications
Board Mount
Equivalent Overload Pressure Range (psi)
<20
Package Length
10.79(Max)
Maximum Supply Current (mA)
10
Series
MPVZ5010G
Part Status
Obsolete
Package Width
10.79(Max)
Maximum Pressure
5.8PSI (40kPa)
Base Product Number
MPVZ5
Minimum Operating Supply Voltage (V)
4.75
