NXP Semiconductors

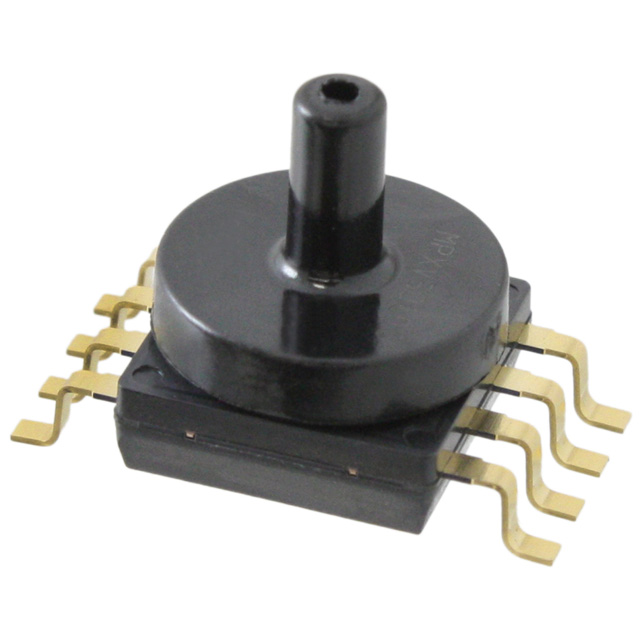

MPXV7002GC6U
Sensors
MPXV7002GC6U
54-MPXV7002GC6U
SENSOR 0.29PSIC 0.13" 4.5V
In Stock : 999
Not available
QUICK RFQ
ADD TO RFQ LIST
- 1+
- $23.38769
- $23.39
- 30+
- $22.31791
- $669.54
ADD TO CART
QUICK ORDER
$23.38769
$23.39
MPXV7002GC6U Description
NXP Semiconductors MPXV7002 Serie
Tech Specifications
Operating Pressure
±0.29PSI (±2kPa)
Unit Weight
0.046057 oz
Device Pressure Type
Gage
PPAP
No
Pressure Type
Compound
Product Status
Active
RoHS
RoHS Compliant
Automotive
No
Port Type
Single Axial Barbless
Supplier Package
SMD
Typical Full Scale Output
4.5VDC
Package / Case
8-SMD, Gull Wing, Top Port
Voltage - Supply
4.75V ~ 5.25V
REACH Status
REACH Unaffected
Response Time (ms)
1
Maximum Operating Supply Voltage (V)
5.25
EU RoHS
Compliant
Moisture Sensitivity Level (MSL)
Not Applicable
Accuracy (%)
±6.25
Operating Temperature
10°C ~ 60°C
Termination Style
Gull Wing
Port Size
Male - 0.13" (3.17mm) Tube
Media
Air
ECCN
EAR99
Mounting Type
Surface Mount
Standard Package Name
SMD
Operating Pressure Range
-2kPa to 2kPa
Pin Count
8
Mounting
Surface Mount
Lead Shape
Gull-wing
Output Voltage (V)
0.5 to 4.5
Typical Operating Supply Voltage (V)
5
HTSUS
8542.39.0001
Package
Tube
USHTS
8542390060
Output Voltage
4.25 V to 4.75 V
Maximum Overload Pressure
75kPa
PCB changed
8
HTS
8542.39.00.60
Output Type
Analog Voltage
ECCN (US)
EAR99
Port Style
Barbless
Supply Voltage - Min
4.75 V
Supplier Device Package
-
Minimum Operating Temperature (°C)
10
Maximum Operating Temperature (°C)
60
Accuracy
±5%
Operating Supply Current
10 mA
Output
0.5 V ~ 4.5 V
Package Height
12.96(Max)
Mfr
NXP USA Inc.
Features
Temperature Compensated
Maximum Operating Temperature
+ 60 C
Supply Voltage - Max
5.25 V
RoHS Status
ROHS3 Compliant
Mounting Style
SMD/SMT
Applications
Board Mount
Equivalent Overload Pressure Range (psi)
<20
Package Length
11.38(Max)
Maximum Supply Current (mA)
10
Minimum Operating Temperature
+ 10 C
Series
MPXV7002
Operating Supply Voltage
5 V
Part Status
Active
Package Width
10.79(Max)
Maximum Pressure
±10.88PSI (±75kPa)
Base Product Number
MPXV7002
Minimum Operating Supply Voltage (V)
4.75
MPXV7002GC6U Documents
Download datasheets MPXV7002GC6U
