TDK Corporation
NTCG104LH473HT1
Sensors
NTCG104LH473HT1
54-NTCG104LH473HT1

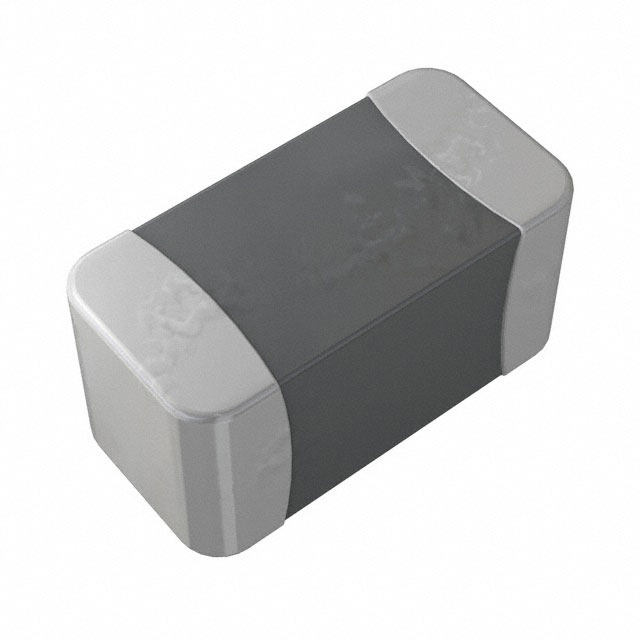

THERMISTOR NTC 47KOHM 4485K 0402
In Stock : 9598
Not available
QUICK RFQ
ADD TO RFQ LIST
- 1+
- $0.03136
- $0.03
ADD TO CART
QUICK ORDER
$0.03136
$0.03
Tech Specifications
Power Rating
100 mW
Sensitivity Index Range (K)
>= 4550
PPAP
No
Product Status
Active
RoHS
RoHS Compliant
Automotive
No
Product Length (mm)
1
Package / Case
0402 (1005 Metric)
REACH Status
REACH Unaffected
EU RoHS
Compliant
B25/50
4485K
Moisture Sensitivity Level (MSL)
1 (Unlimited)
Operating Temperature
-40°C ~ 125°C
Construction
Solder Pad
B0/50
-
B Tolerance
3 %
Termination Style
SMD/SMT
ECCN
EAR99
Percentage of Resistance Tolerance @ 25C (%)
±3
B Value Tolerance
±3%
Mounting Type
Surface Mount
Mounting
Surface Mount
Resistance
47 kOhms
Number of Terminals
2
Resistance Range @ 25C (Ohm)
25000 to 120000
Resistance in Ohms @ 25°C
47k
HTSUS
8533.40.8070
Package
Tape & Reel (TR)
USHTS
8533408070
Application
Temperature Compensation|Temperature Sensor
B25/85
4550K
B Parameter
4550 K
HTS
8533.40.80.70
ECCN (US)
EAR99
Resistance Tolerance
±3%
B25/100
-
Percentage of Resistance Tolerance Range @ 25C (%)
±2 to ±5
Minimum Operating Temperature (°C)
-40
Maximum Operating Temperature (°C)
125
B25/75
-
Accuracy
±3%
Mfr
TDK Corporation
Height
0.5 mm
Product Depth (mm)
0.5
Maximum Operating Temperature
+ 125 C
Width
0.5 mm
Diameter
-
RoHS Status
ROHS3 Compliant
Resistance @ 25C (Ohm)
47000
Mounting Style
PCB Mount
Tolerance
3 %
Maximum Power Rating (W)
100m
Minimum Operating Temperature
- 40 C
Series
NTCG
Length - Lead Wire
-
Type
NTC
Body Material
Ceramic
Length
1 mm
Power - Max
100 mW
Product Height (mm)
0.5
Part Status
Active
Beta Value
B25/85
Sensitivity Index (K)
4550
NTCG104LH473HT1 Documents
Download datasheets NTCG104LH473HT1
