TDK Corporation

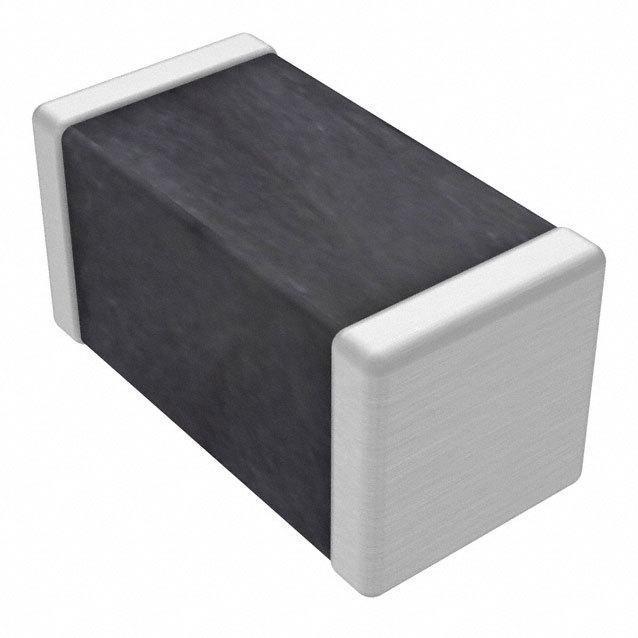

NTCG164LH223JT
Sensors
NTCG164LH223JT
54-NTCG164LH223JT
Thermistor NTC 22K Ohm 5% 2-Pin 0603 Surface Mount Solder Pad 4550K T/R
In Stock : 955
Not available
QUICK RFQ
ADD TO RFQ LIST
NTCG164LH223JT Description
TDK Corporation NTCG Serie
Tech Specifications
Power Rating
100 mW
Unit Weight
0.004444 oz
Lead Diameter
-
HTS
8533.40.80.70
Sensitivity Index Range (K)
>= 4550
ECCN (US)
EAR99
PPAP
No
Lead Spacing
-
Percentage of Resistance Tolerance Range @ 25C (%)
±5 to ±10
RoHS
RoHS Compliant
Automotive
No
Minimum Operating Temperature (°C)
-40
Maximum Operating Temperature (°C)
125
Accuracy
±3%
Product Length (mm)
1.6
Package / Case
0603 (1608 metric)
Voltage
-
Height
0.8 mm
Product Depth (mm)
0.8
Maximum Operating Temperature
+ 125 C
EU RoHS
Compliant
Width
0.8 mm
Diameter
-
Resistance @ 25C (Ohm)
22000
Mounting Style
PCB Mount
Construction
Solder Pad
B Tolerance
3 %
Termination Style
SMD/SMT
Tolerance
5 %
Current Rating
-
ECCN
EAR99
Percentage of Resistance Tolerance @ 25C (%)
±5
Minimum Operating Temperature
- 40 C
Mounting
Surface Mount
Resistance
22 kOhms
Series
NTCG
Type
NTC
Number of Terminals
2
Resistance Range @ 25C (Ohm)
6000 to 25000
Length
1.6 mm
Product Height (mm)
0.8
Part Status
Active
Beta Value
-
Package
Tape and Reel
USHTS
8533408070
Application
Temperature Compensation|Temperature Sensor
B Parameter
4550 K
Sensitivity Index (K)
4550
