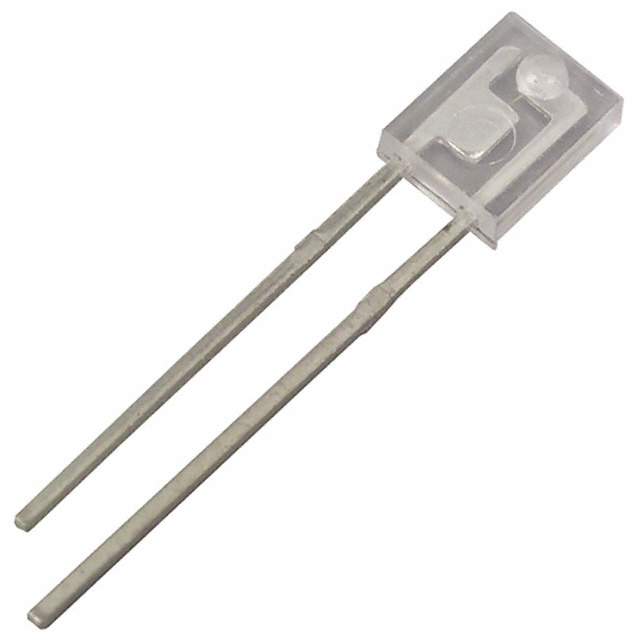

TT Electronics / Optek_OP560C
TT Electronics / Optek_OP560C
TT Electronics / Optek

OP560C

Sensors
TT Electronics / Optek
OP560C
54-OP560C
TT Electronics / Optek-OP560C-datasheet-788707.pdf
TT Electronics / Optek-OP560C-datasheets-788707.pdf
SENSOR PHOTO 935NM SIDE VIEW RAD
In Stock : 836

Not available

QUICK RFQ
ADD TO RFQ LIST
ampheo flow
  • Quantity
  • Unit Price
  • Ext. Price
    • 1+
    • $1.29800
    • $1.3
    • 10+
    • $1.23201
    • $12.32
    • 100+
    • $1.18801
    • $118.8
    • 1000+
    • $1.15500
    • $1155
    ADD TO CART
    QUICK ORDER
    $1.29800    $1.30
    Description Tech Specifications Documents Shopping Guide

    OP560C Description

    TT Electronics / Optek Phototransistors

    Tech Specifications

    Unit Weight
    0.025230 oz
    Viewing Angle
    56°
    Product
    Phototransistors
    Current - Dark (Id) (Max)
    100 nA
    Product Status
    Active
    Voltage - Collector Emitter Breakdown (Max)
    15 V
    RoHS
    RoHS Compliant
    Package / Case
    Radial
    REACH Status
    REACH Unaffected
    Collector-Emitter Saturation Voltage
    1.1 V
    Mfr
    TT Electronics/Optek Technology
    Maximum Operating Temperature
    + 100 C
    RoHS Status
    ROHS3 Compliant
    Moisture Sensitivity Level (MSL)
    1 (Unlimited)
    Mounting Style
    Through Hole
    Operating Temperature
    -40°C ~ 100°C (TA)
    Collector-Emitter Breakdown Voltage
    15 V
    Current - Collector (Ic) (Max)
    9.8 mA
    ECCN
    EAR99
    Orientation
    Side View
    Mounting Type
    Through Hole
    Wavelength
    935nm
    Minimum Operating Temperature
    - 40 C
    Series
    -
    Type
    NPN Silicon Phototransistor
    Power - Max
    100 mW
    Collector- Emitter Voltage VCEO Max
    15 V
    HTSUS
    8541.49.7080
    Package
    Bulk
    Pd - Power Dissipation
    100 mW
    USHTS
    8541497080
    Dark Current
    100 nA
    Base Product Number
    OP560

    OP560C Documents

    Download datasheets OP560C
