TT Electronics / Optek_OPL563
TT Electronics / Optek_OPL563
TT Electronics / Optek

OPL563

Sensors
TT Electronics / Optek
OPL563
54-OPL563
TT Electronics / Optek-OPL563-datasheet-789642.pdf
TT Electronics / Optek-OPL563-datasheets-789642.pdf

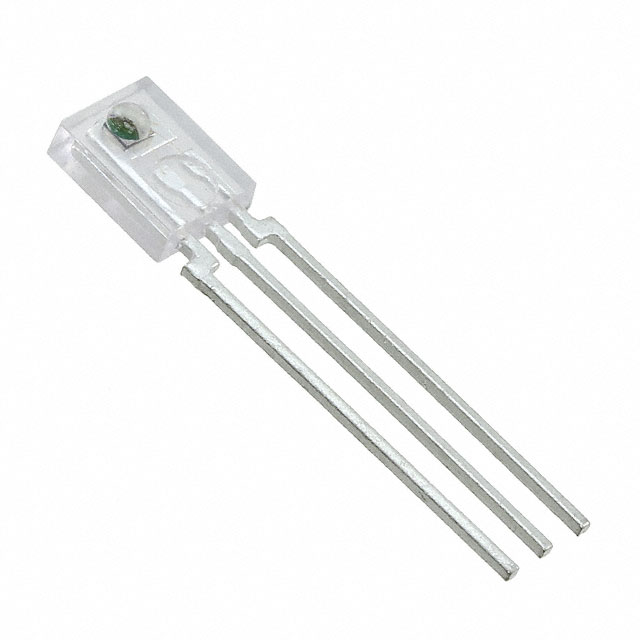

SENSOR PHOTOLOGIC SIDE LOOKING
In Stock : 937

Not available

QUICK RFQ
ADD TO RFQ LIST
ampheo flow
  • Quantity
  • Unit Price
  • Ext. Price
    • 1+
    • $1.58400
    • $1.58
    • 10+
    • $1.52901
    • $15.29
    • 100+
    • $1.48500
    • $148.5
    • 1000+
    • $1.44101
    • $1441.01
    ADD TO CART
    QUICK ORDER
    $1.58400    $1.58
    Description Tech Specifications Documents Shopping Guide

    OPL563 Description

    TT Electronics / Optek Photologic® Serie, Photo IC Sensors

    Tech Specifications

    Unit Weight
    0.010835 oz
    Output Type
    Push-Pull
    Product
    Photo IC Sensors
    Fall Time
    70 ns
    Product Status
    Active
    RoHS
    RoHS Compliant
    Operating Supply Current
    8 mA
    Package / Case
    3-SIP, Side View
    Number of Channels
    1 Channel
    REACH Status
    REACH Unaffected
    Mfr
    TT Electronics/Optek Technology
    Height
    5.72 mm
    Maximum Operating Temperature
    + 85 C
    Width
    4.45 mm
    RoHS Status
    ROHS3 Compliant
    Moisture Sensitivity Level (MSL)
    1 (Unlimited)
    Mounting Style
    Through Hole
    Operating Temperature
    -40°C ~ 85°C (TA)
    Low Level Output Voltage
    400 mV
    ECCN
    EAR99
    Wavelength
    935nm
    Minimum Operating Temperature
    - 40 C
    High Level Output Current
    100 uA
    Series
    Photologic®
    Type
    Photo Detector, Logic Output
    Rise Time
    70 ns
    Length
    2.34 mm
    Operating Supply Voltage
    4.5 V to 16 V
    HTSUS
    8541.49.9500
    Package
    Bulk
    Pd - Power Dissipation
    200 mW
    USHTS
    8541497080
    Propagation Delay Time
    5 us
