Bourns, Inc.

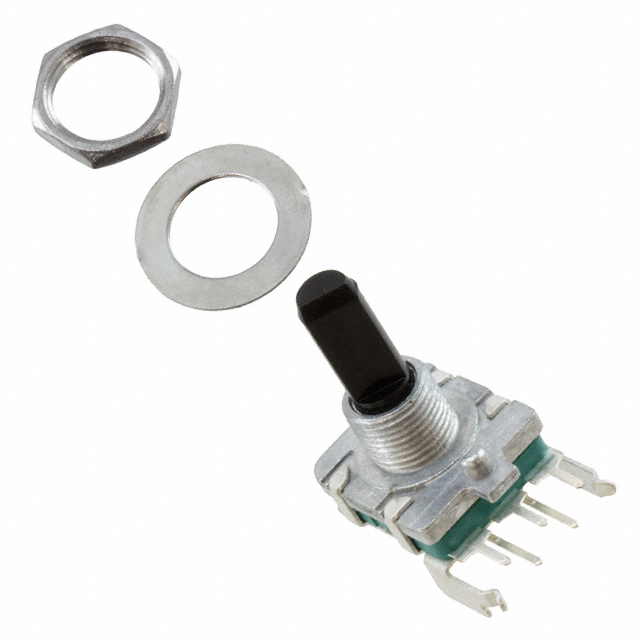

PEC16-2120F-S0012
Sensors
PEC16-2120F-S0012
54-PEC16-2120F-S0012
ROTARY ENCODER MECHANICAL 12PPR
In Stock : 489
Not available
QUICK RFQ
ADD TO RFQ LIST
- 1+
- $1.30480
- $1.3
- 10+
- $1.19456
- $11.95
- 100+
- $1.11989
- $111.99
- 1000+
- $1.04878
- $1048.78
ADD TO CART
QUICK ORDER
$1.30480
$1.30
Tech Specifications
Unit Weight
0.282192 oz
Product
Contacting Encoders
Encoder Type
Mechanical
PPAP
No
Built in Switch
Yes
Maximum Operating Speed
100r/min
Product Status
Active
RoHS
RoHS Compliant
Automotive
No
Tradename
Pro Audio
Product Length (mm)
16.1
Number of Channels
2
Technology
Mechanical
Voltage - Supply
-
REACH Status
REACH Unaffected
EU RoHS
Compliant
Shaft Style
Flat
Moisture Sensitivity Level (MSL)
Not Applicable
Encoder Signal
Digital Square Wave
Termination Style
PC Pin
Terminal Type
PC Pin
ECCN
EAR99
Rotational Life (Cycles Min)
100K
Orientation
Right Angle
Mounting Type
Panel, PCB Through Hole
Size / Dimension
16 mm
Mounting
Through Hole
With Switch
Push/Pull Switch
Shock Rating
100G
Maximum Operating Torque (N.m)
0.02
Life
100000 Cycle
Pulses per Revolution
12
HTSUS
8543.70.4500
Package
Tray
USHTS
8543704500
Resolution
12 PPR
Programmability
No
HTS
8543.70.98.60
Output Type
Quadrature (Incremental)
ECCN (US)
EAR99
Minimum Operating Temperature (°C)
-30
Maximum Operating Temperature (°C)
70
Number of Detents
12 Detent
Detent
Yes
Mfr
Bourns Inc.
Shaft Diameter (mm)
6
Product Depth (mm)
31.1
Maximum Operating Temperature
+ 70 C
Mechanical Life (Cycles)
100000
RoHS Status
ROHS3 Compliant
Encoder Code
Quadrature
Mounting Style
PCB Mount
Motion
Rotary
Shaft Type
D / Flatted
Actuator Type
6mm Dia Flatted End
Encoder Reading
Incremental
Shaft Diameter
6 mm
Minimum Operating Temperature
- 30 C
Series
PEC16
Type
Incremental
Body Orientation
Right Angle
IP Rating
IP40
Operating Supply Voltage
5 VDC
Product Height (mm)
17.3
Part Status
Active
Base Product Number
PEC16
PEC16-2120F-S0012 Documents
Download datasheets PEC16-2120F-S0012
