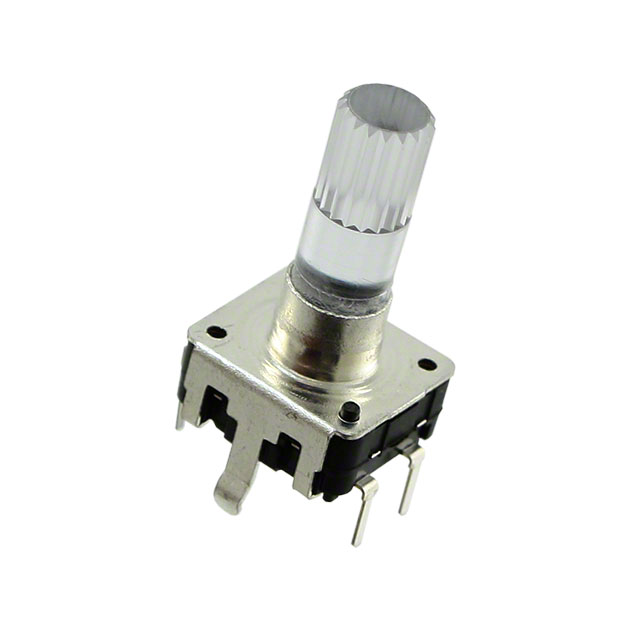

Bourns, Inc._PEL12S-4224S-N1024
Bourns, Inc._PEL12S-4224S-N1024
Bourns, Inc.

PEL12S-4224S-N1024

Sensors
Bourns, Inc.
PEL12S-4224S-N1024
54-PEL12S-4224S-N1024
Bourns, Inc.-PEL12S-4224S-N1024-datasheet-687687.pdf
Bourns, Inc.-PEL12S-4224S-N1024-datasheets-687687.pdf
ROTARY ENCODER MECHANICAL 24PPR
In Stock : 860

Not available

QUICK RFQ
ADD TO RFQ LIST
ampheo flow
  • Quantity
  • Unit Price
  • Ext. Price
    • 1+
    • $2.27410
    • $2.27
    • 10+
    • $2.08197
    • $20.82
    • 100+
    • $1.95186
    • $195.19
    • 1000+
    • $1.82792
    • $1827.92
    ADD TO CART
    QUICK ORDER
    $2.27410    $2.27
    Description Tech Specifications Documents Shopping Guide

    Tech Specifications

    Unit Weight
    0.105822 oz
    Bushing Thread
    -
    Output Type
    Quadrature (Incremental)
    Product
    Contacting Encoders
    Encoder Type
    Mechanical
    Built in Switch
    No
    Product Status
    Active
    RoHS
    RoHS Compliant
    Shaft Length
    24 mm
    Tradename
    Pro Audio
    Number of Detents
    24 Detent
    Number of Channels
    2 Channel
    Technology
    Rotary
    Voltage - Supply
    -
    Detent
    Yes
    REACH Status
    REACH Unaffected
    Mfr
    Bourns Inc.
    Maximum Operating Temperature
    + 70 C
    RoHS Status
    ROHS3 Compliant
    Moisture Sensitivity Level (MSL)
    1 (Unlimited)
    Mounting Style
    PCB Mount
    Bushing Material
    -
    Termination Style
    PC Pin
    Shaft Type
    Knurled
    Actuator Type
    6mm Dia Knurled End, Illuminated
    ECCN
    EAR99
    Shaft Diameter
    6 mm
    Rotational Life (Cycles Min)
    30K
    Orientation
    Vertical
    Mounting Type
    PCB, Through Hole
    Size / Dimension
    12 mm
    Minimum Operating Temperature
    - 10 C
    Series
    PEL12S
    Type
    Incremental
    With Switch
    Without Switch
    Bushing Size
    -
    IP Rating
    IP40
    Operating Supply Voltage
    5 VDC
    Life
    30000 Cycle
    Pulses per Revolution
    24
    HTSUS
    8543.70.4500
    Package
    Tray
    USHTS
    8543704500
    Resolution
    24 PPR
    Base Product Number
    PEL12S

    PEL12S-4224S-N1024 Documents

    Download datasheets PEL12S-4224S-N1024
